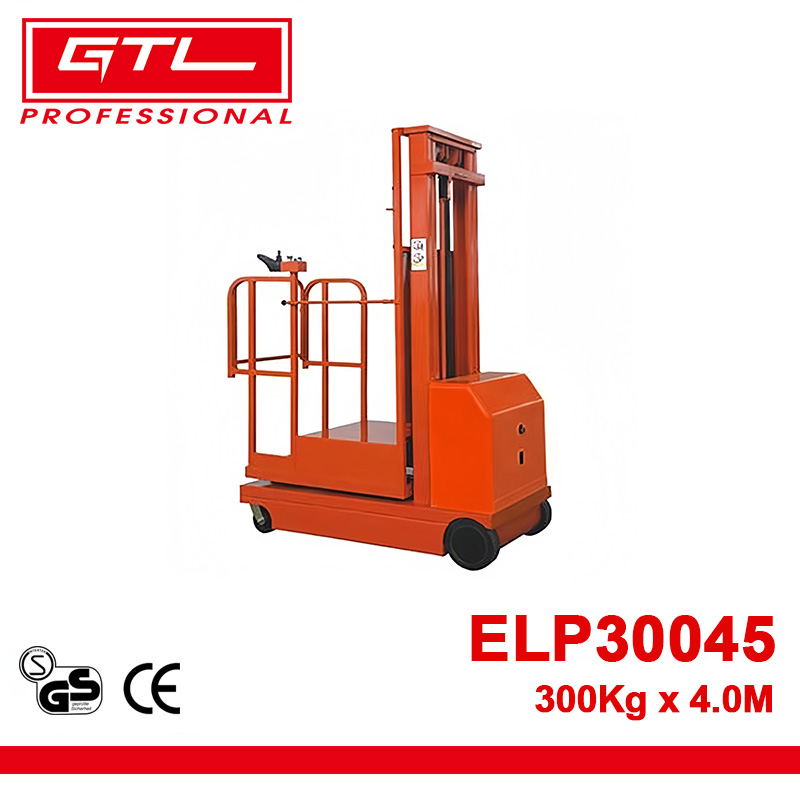

This electric Picker Lift combines a high 4.0-meter working reach with a remarkably compact base (600x700mm), ideal for confined spaces. Its robust 300 kg capacity supports an operator and tools with stability, enhanced by safety guardrails. Powered by efficient 24V battery systems, it ensures extended autonomous operation. Separate drive and powerful lift motors provide reliable performance, while a two-key ignition system guarantees secure, authorized use.
| Item No.: | ELP30045 |
| capacity: | 300Kg |
| Platform height: | 2000mm |
| Platform width: | 700mm |
| Platform length: | 600mm |
| Working height: | 4000mm |
| Platform dimensions: | 600x700mm |
| Operator dimensions: | 350x700mm |
| Guardrail height: | 100mm |
| Batteries: | 2x 12V / 100Ah |
| Motion motors: | 2x 24 / 0.5Kw |
| Lifting motor: | DC24 / 1.2Kw |
| Up / down speed: | 12/14 mm/sec |
| Maximum speed: | 4 km/h |
| Ignition key: | 2 |
High Working Reach with a Compact Base:The platform achieves a significant 4.0-meter working height, providing excellent access for maintenance and replacement tasks. This is combined with a compact platform base (600x700mm) and operator area (350x700mm), allowing it to operate effectively in confined and narrow spaces.
Robust Lifting Capacity and Stability:With a 300 kg load capacity, the platform can safely hold a single operator, their tools, and necessary equipment. The inclusion of guardrails further enhances operational safety and stability while working at height.
Efficient and Independent Drive & Lift Systems:It features separate powerful motors: two 0.5 kW motors for traction ensuring smooth movement and a stronger 1.2 kW DC motor for lifting. This dedicated lifting system provides reliable and consistent up/down movement (12/14 mm/sec) even under full load.
Extended Autonomous Operation:Powered by two large 12V/100Ah batteries, the platform offers substantial battery life for a full day's work without frequent recharging. The 24V DC system for both motion and lifting is efficient and well-suited for battery operation.
Enhanced Safety and Control Features:Safety is prioritized with a 100mm guardrail to prevent accidental slips from the platform. Control is secured via a two-key ignition system, preventing unauthorized use and ensuring that only trained operators can start the equipment.
