This professional single swing arm tire scraping machine is built for power and versatility in any auto shop. It effortlessly handles a broad spectrum of wheel sizes from 10" to 24" using both external clamping and internal support. With a powerful 3000 kg tire pressure and 8-10 bar operating pressure, it tackles the toughest jobs reliably. The robust yet compact design is optimized for shop floors, while sub-70 dB operation ensures a quieter workspace. Customize your workflow with optional motorcycle fixtures and tire pressure rods. It's the efficient, heavy-duty solution for universal tire servicing.

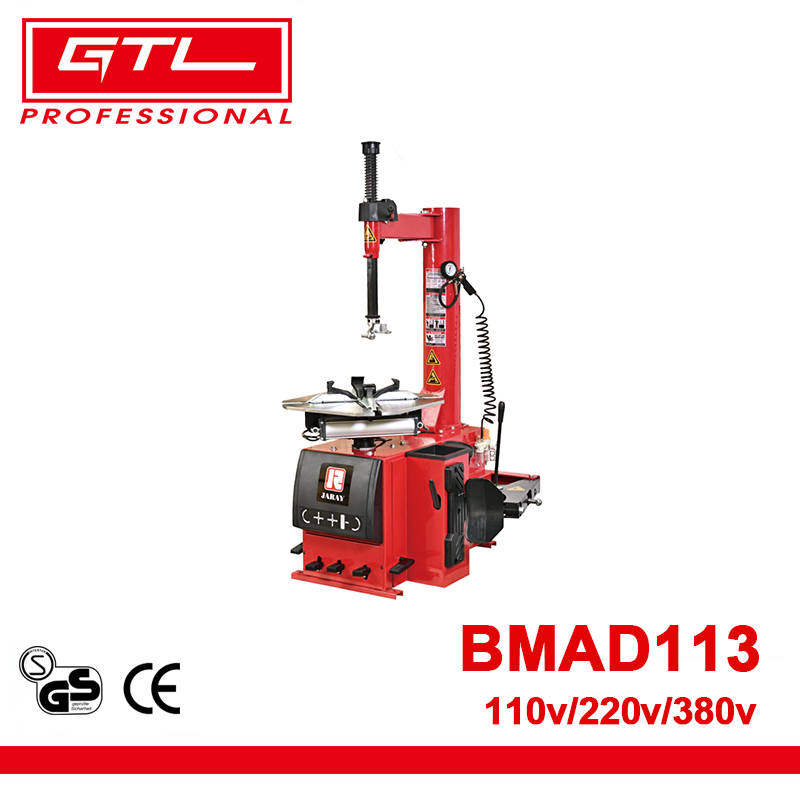

| Item No: | BMAD113 |

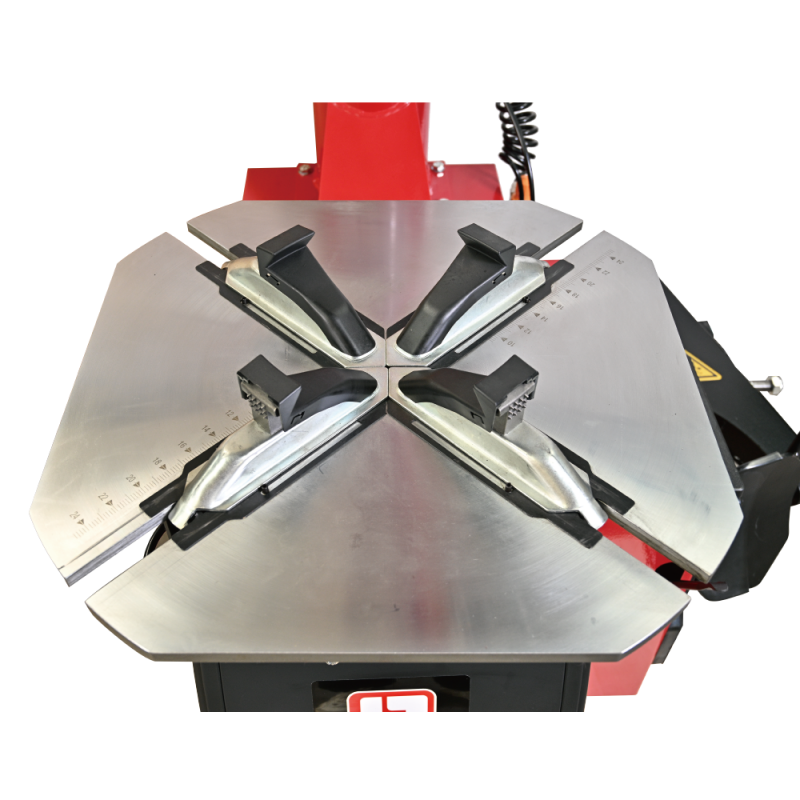

| External clamping wheel rim: | 12 "-22" |
| Internal support wheel rims: | 10"-24" |
| Maximum wheel diameter: | 1040mm |
| Maximum wheel width: | 3 "-15" |
| Operating pressure: | 8-10bat |
| Motor: | 110v/220v/380v |
| Tire pressure: | 3000kg |
| Noise: | <70db |
| Outer packing size: | 1100*900*800mm |
| Volume: | 0.8m³ |
| Net weight: | 220kg |
| Total weight: | 240kg |
| Optional motorcycle fixture Optional tire pressure rod | |
Versatile and Universal Compatibility: Handles a wide range of wheel sizes, from 10" to 24" in diameter, accommodating everything from motorcycle and passenger car tires to large truck and SUV rims with both external clamping and internal support systems.
Robust and Powerful Operation: Features a high tire pressure capacity of 3000 kg and an operating pressure of 8-10 bar, ensuring strong, secure, and effective scraping and demounting of even the most stubborn tires.

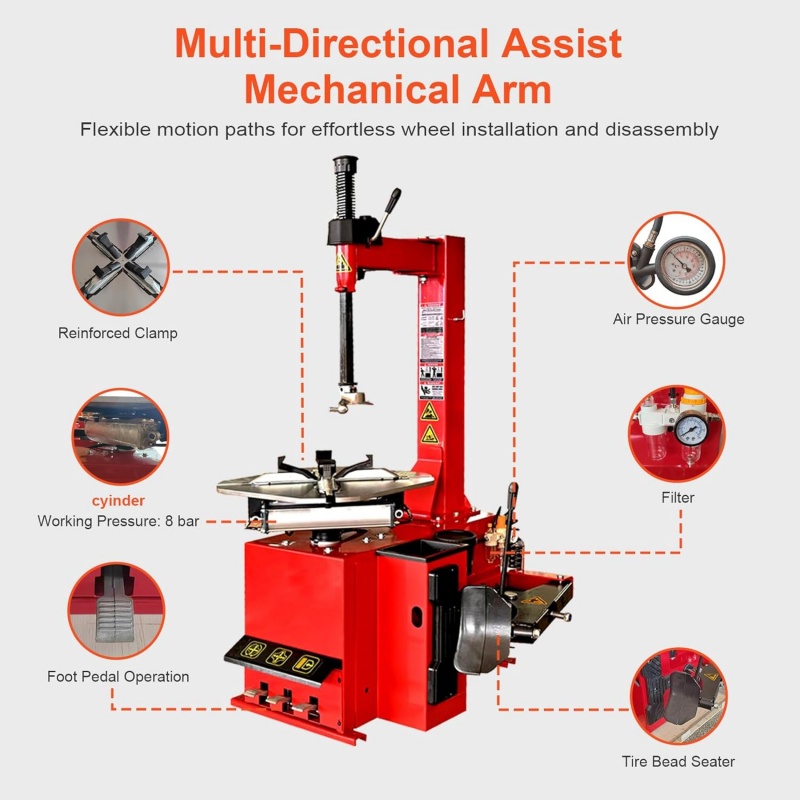

User-Friendly and Space-Efficient Design: The single swing arm mechanism simplifies operation, while the compact outer packing size (1100*900*800mm) and relatively low weight make it manageable for installation in various workshop layouts.
Quiet and Reliable Performance: Operates at a low noise level of less than 70 dB, creating a more comfortable and compliant working environment without sacrificing power.
Flexible and Adaptable Configuration: Offers optional accessories like a motorcycle fixture and tire pressure rod, allowing for specialized applications and enhancing the machine's functionality for a broader range of tasks.
