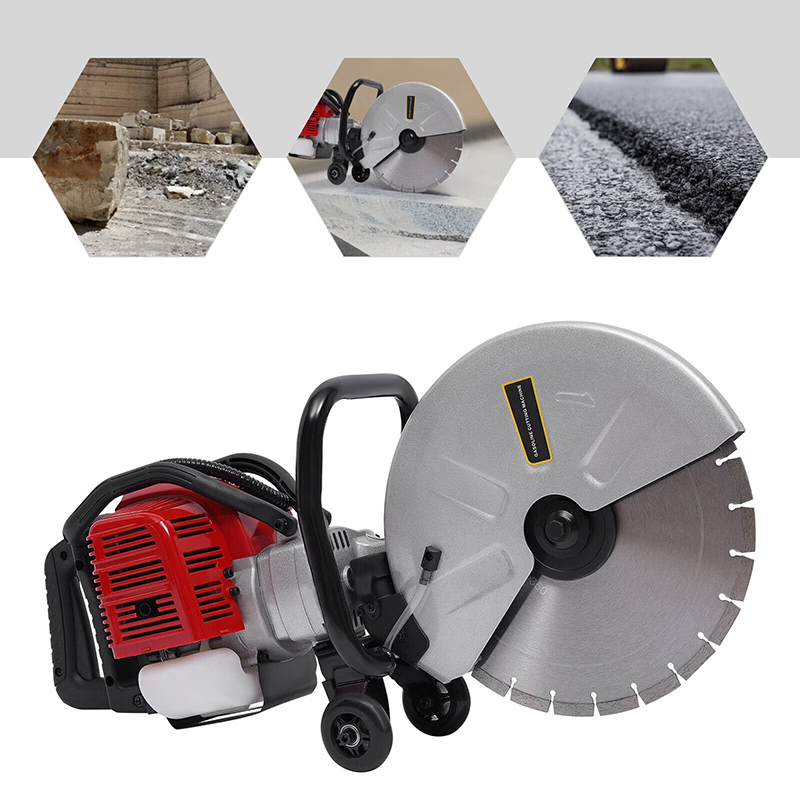

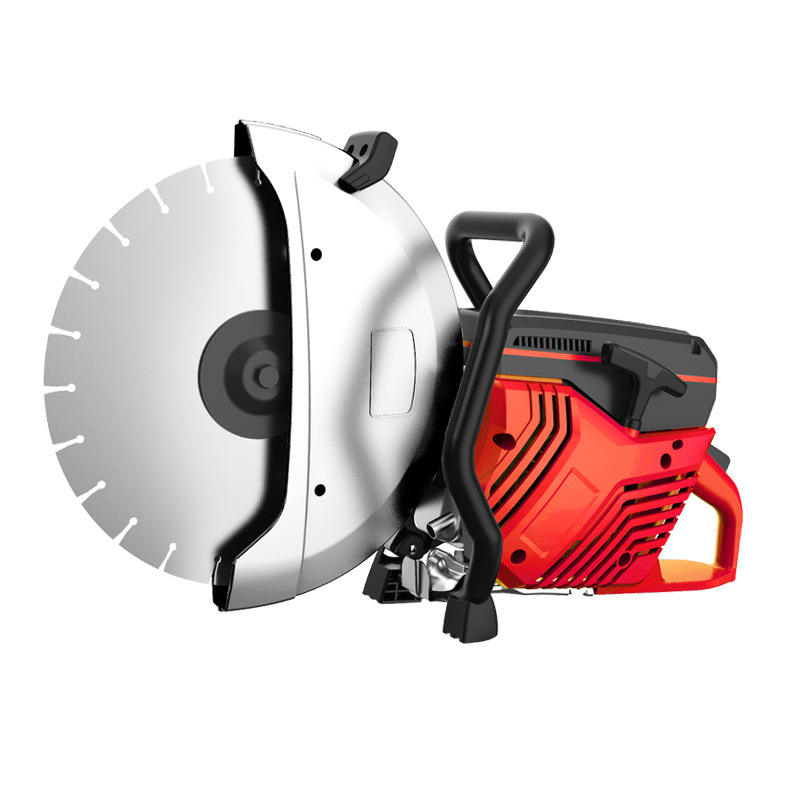

This 2-stroke gasoline concrete cutter (74cc displacement, 3.5kW power) features an air-cooled single-cylinder engine, delivering a max blade speed of 4800r/min for efficient cutting up to 5 inches depth.
Equipped with a 14-inch blade and 950ml fuel tank, this portable cutter operates at 3200-9350r/min, ideal for on-site concrete, stone and masonry cutting tasks.

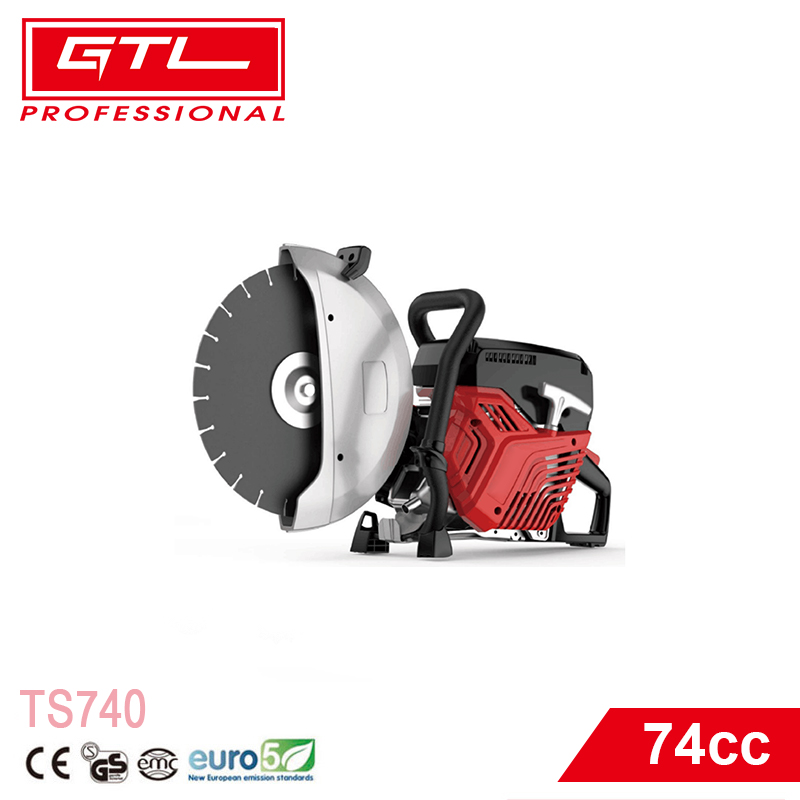

| Item No.: | TS740 |
| Displacement: | 74cc |
| Rated output power: | 3.5kW |
| Idling speed: | 3200±500r/min |
| Max. speed: | 9350±500r/min |
| Max. cutting depth: | 5inch/120mm |
| Blade diameter: | 14inch/350mm |
| Bore diameter: | 25.4mm |
| Blade speed: | 4800r/min |
| Fuel tank capacity: | 950ml |
Cutting Performance: 14-inch (350mm) blade enables a max cutting depth of 5 inches (120mm); 4800r/min blade speed ensures smooth, precise cuts on concrete, stone and masonry.
Practical Design: 950ml large fuel tank supports long-duration operation; compact structure and portable design suit both indoor and outdoor on-site work.
Applicability: Perfect for construction sites, road maintenance, and renovation projects—ideal for cutting concrete slabs, curbs, bricks and other hard materials.
