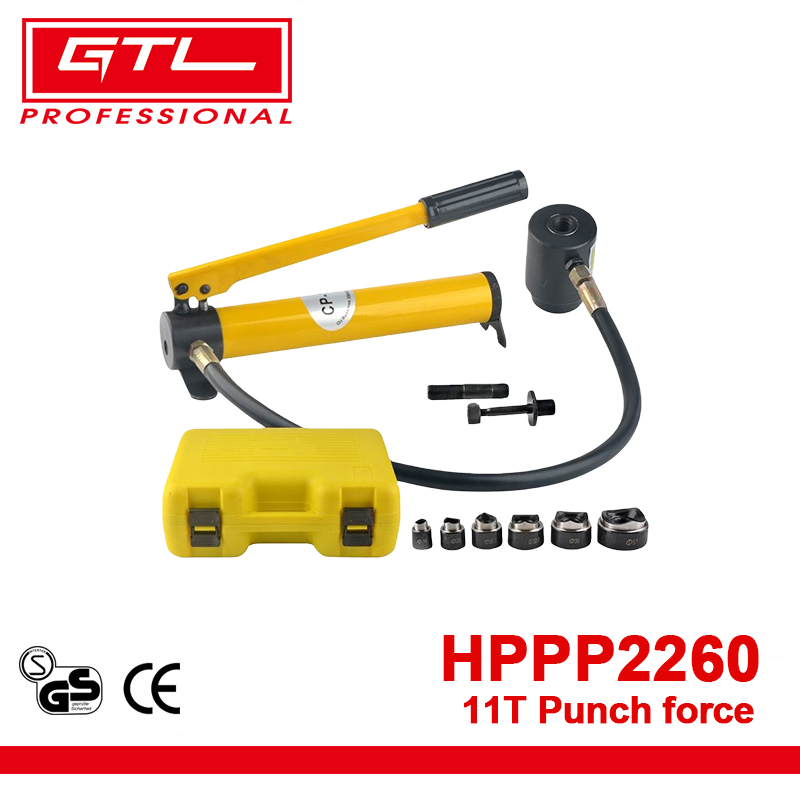

These professional hydraulic plate punching pliers are a powerful and versatile solution for metal fabrication. Generating 11 tons of force, they effortlessly punch clean holes from 22mm to 60mm in diameter through medium carbon steel sheets up to 3.5mm thick. The tool comes as a complete kit with six round dies and specialized studs, ensuring readiness for a wide range of tasks. With its robust build, substantial hydraulic oil capacity, and a 1-meter hose, it is designed for durability, efficiency, and ease of use in demanding workshop environments, significantly speeding up production and layout work
| Item No: | HPPP2260 |
| Capacity: | 22 to 60mm |
| Plate punch capacity (material x thickness): | medium carbon steel sheets up to 3.5mm thick |
| Punch force: | 11t |
| Hydraulic piston stroke: | 22mm |
| Oil capacity: | 450ml |
| Oil type: | hydraulic oil |

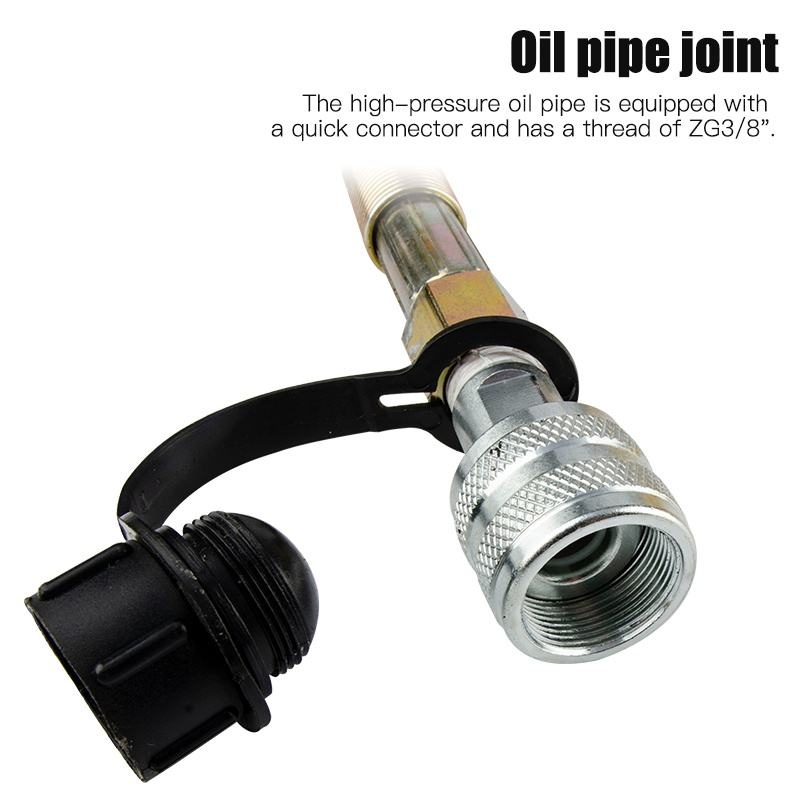

| Hose connection thread: | "> side connected to the pump, female thread - M14x1.5mm and the other side, 3/8" BSP thread |
| Hose diameter x length: | 16 mm x 1000 mm |

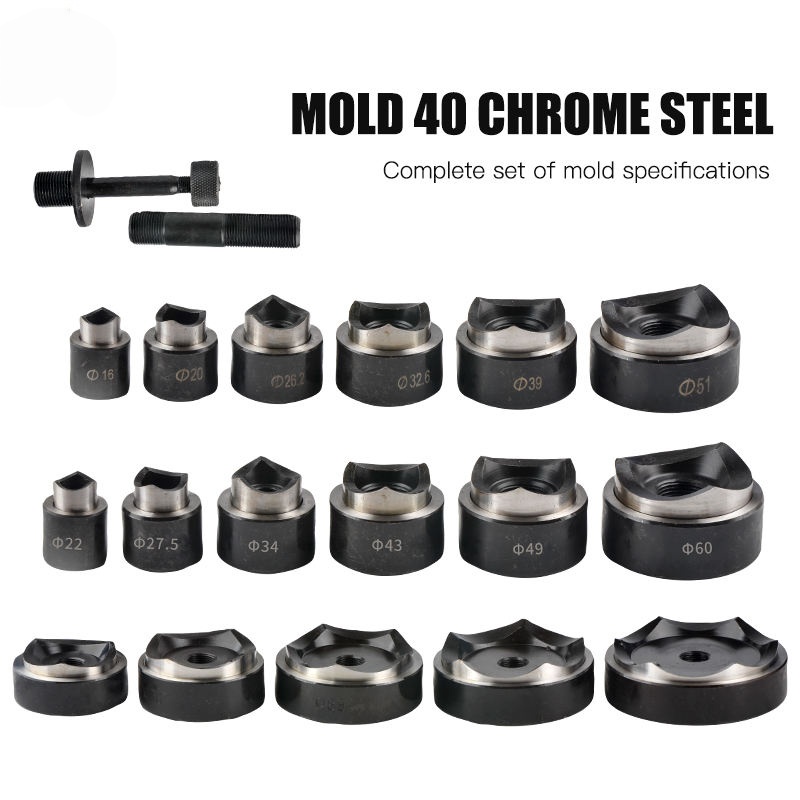

| Dies: | ø 22 mm, ø 27 mm, ø 34 mm, ø 43 mm, ø 49mm and 60 mm plus 1 stud 3/4" x 3/4", 1 stud 7/16" x 3/4", 1 spacer and 1 seal kit |
High-Capacity Punching: Capable of cleanly punching holes from 22mm to 60mm in diameter, covering a wide range of industrial needs.
Powerful Hydraulic Force: Delivers a formidable 11 tons of punching force, enabling it to penetrate tough materials with ease.
Versatile Material Handling: Designed to punch through medium carbon steel sheets up to 3.5mm thick, suitable for various metal fabrication tasks.

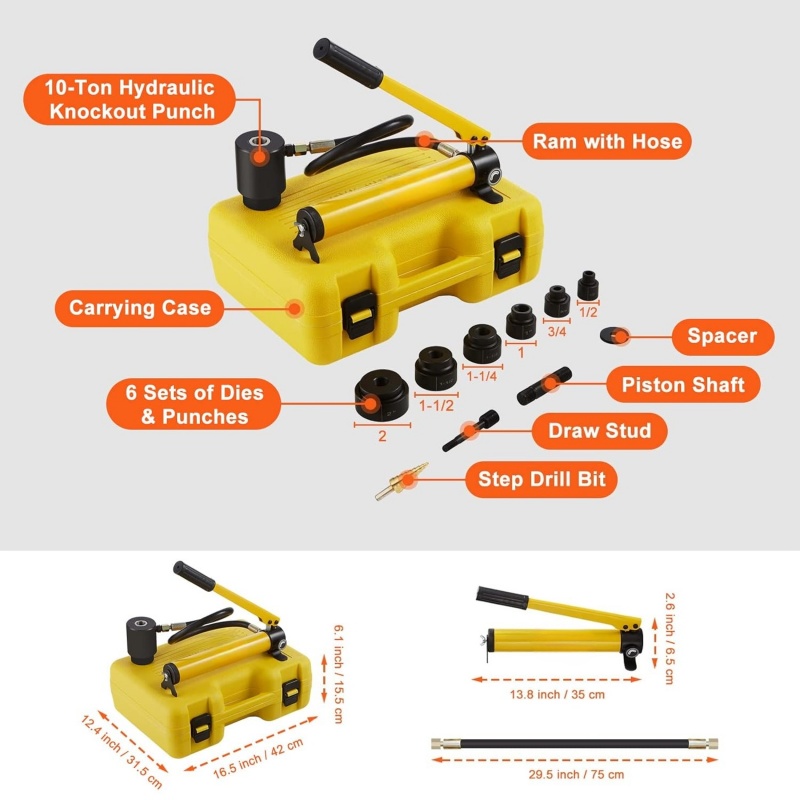

Comprehensive Kit with Multiple Dies: Includes six standard round dies (22-60mm) and specialized studs, providing exceptional versatility for different hole sizes and applications.

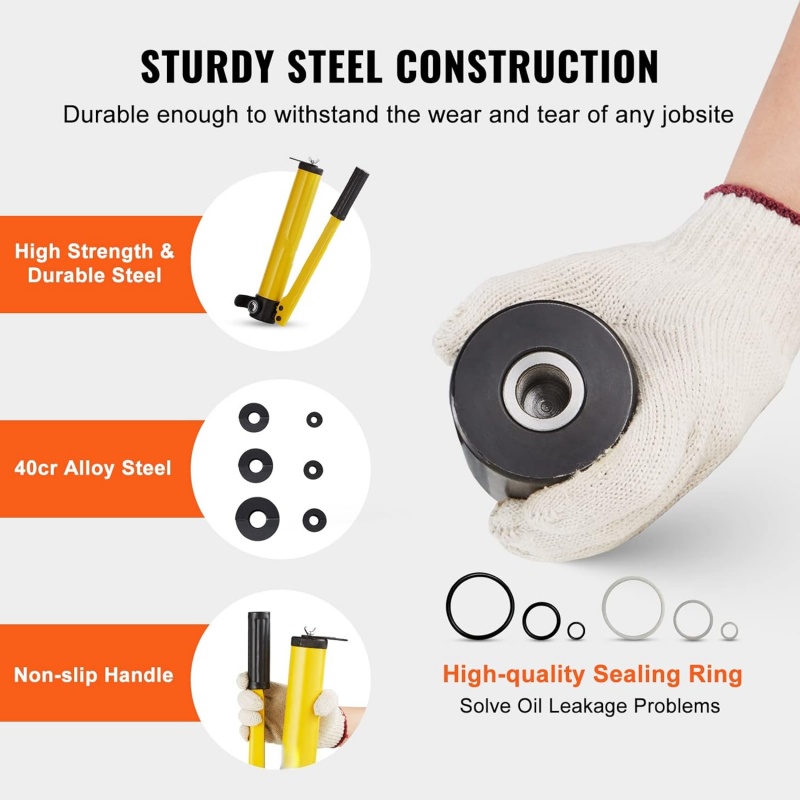

Robust Construction & Ample Oil Capacity: Built for durability in a workshop environment, with a large 450ml oil reservoir for sustained operation and a long 1-meter hose for convenient maneuverability.
