This hydraulic gear puller features interchangeable 2/3-claw jaws and 360° rotatable pump head for versatile adaption to diverse working conditions. Its sealed, oil-proof jaws and one-piece forged steel body eliminate oil leakage, while the thickened cylinder and ejector pin ensure sturdiness, wear resistance and high centering accuracy. Portable and easy to operate, it suits railway, machinery, mine and construction applications, ideal for disassembling pulleys, gears, bearings and other round workpieces.
| Item No | Spread Range | Output |
| 38400305 | 50-200mm | 5 Ton |
| 38400310 | 50-250mm | 10 Ton |

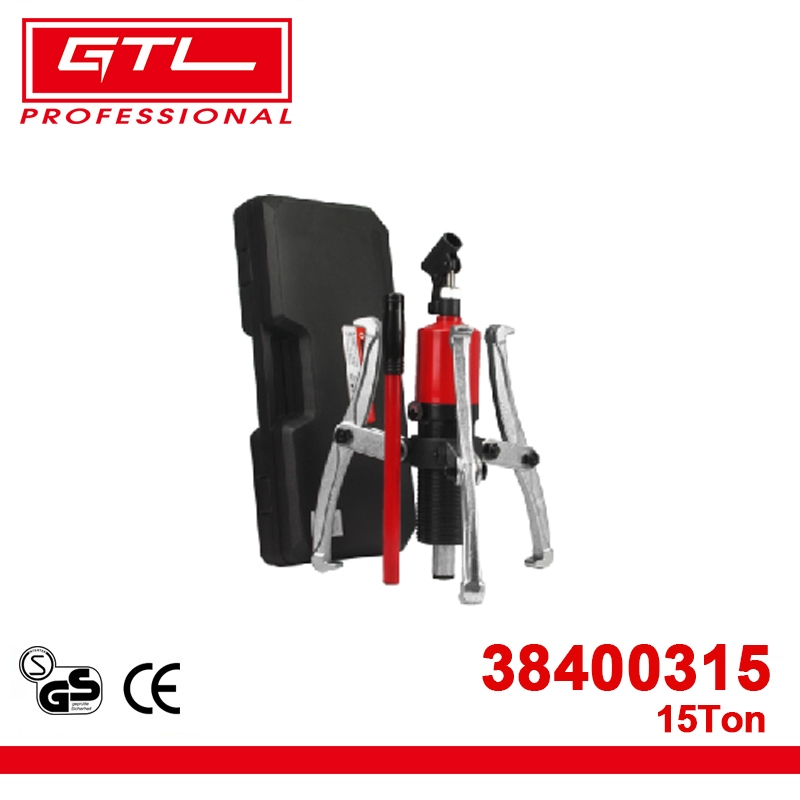

| 38400315 | 50-300mm | 15 Ton |
| 38400320 | 100-350mm | 20 Ton |
| 38400330 | 150-400mm | 30 Ton |
| 38400350 | 200-500mm | 50 Ton |
Rotation: The 2-claw and 3-claw of the gear puller can be ly replaced to adapt to different working conditions. And you can also adjust the high and low points as needed by rotating the pump head 360 degrees. In addition, the jaws adopt a sealed and oil-proof design, which has high safety performance and eliminates oil leakage problems.

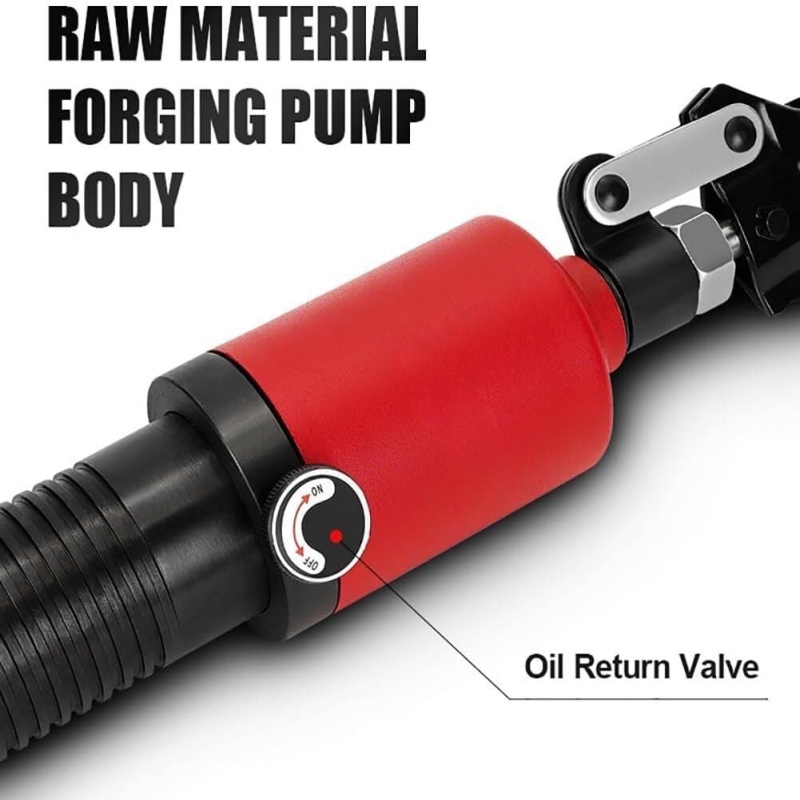

Sturdy and Durable: The main body of the hydraulic gear drawing is forged from high-quality steel and cast in one piece, eliminating the need for sealing rings to prevent oil leakage. The hydraulic cylinder is also thickened for excellent pressure resistance, ensuring long-lasting performance even under heavy use.

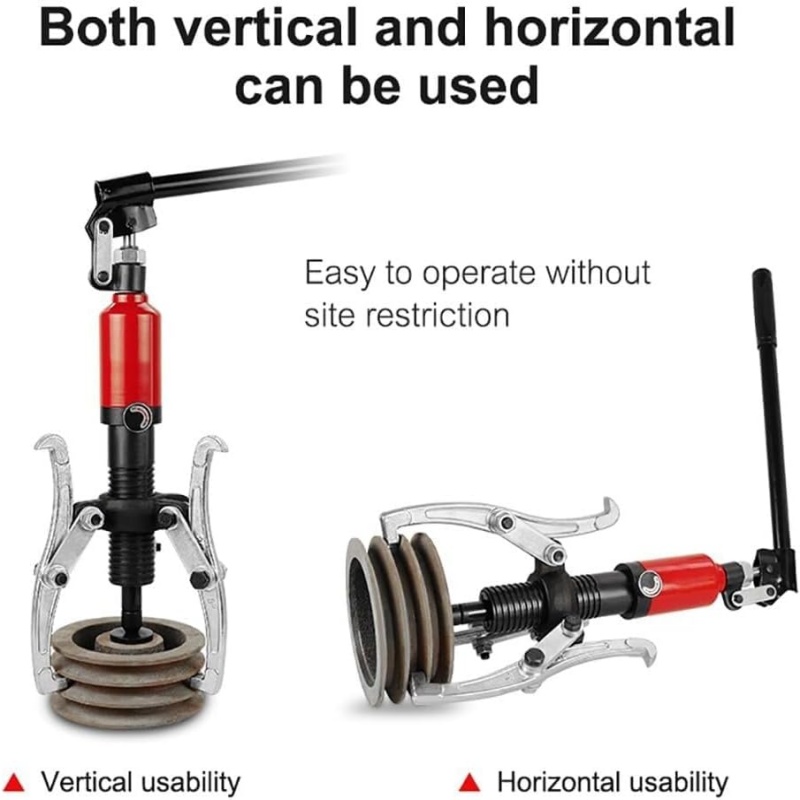

Wide Application: The puller is easy to carry and operate, and is suitable for railway vehicle maintenance, machinery installation, mine maintenance, construction engineering support, etc. It can also disassemble round workpieces such as pulleys, gears and bearings in various mechanical equipment.

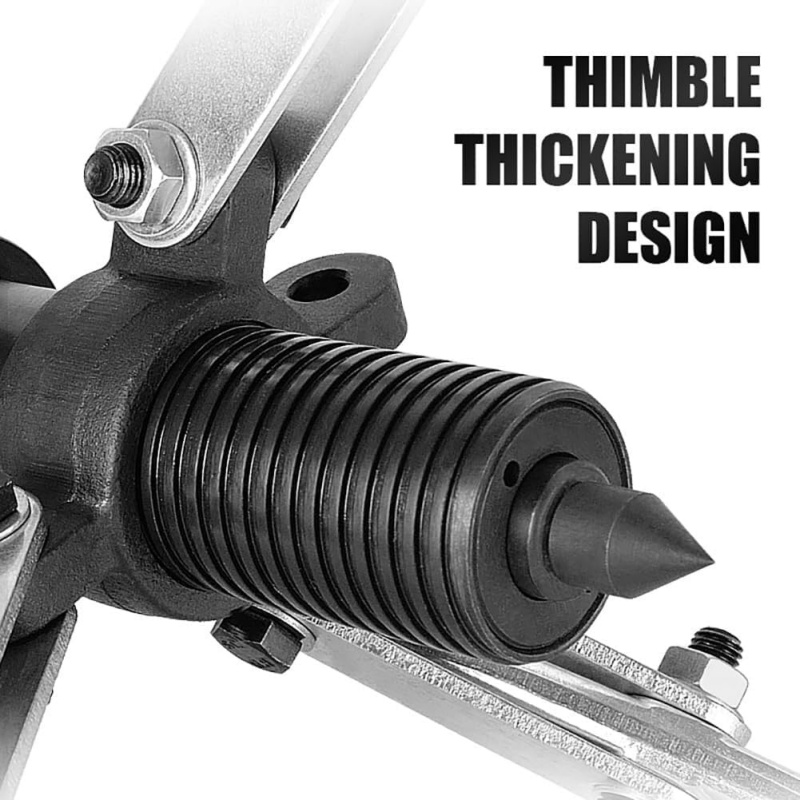

High center positioning accuracy: This gear puller adopts a thickened ejector pin design to improve wear resistance. This feature not only ensures durability but also improves the centering accuracy of the tool. You can trust this puller to remove a variety of components with precision and efficiency.
