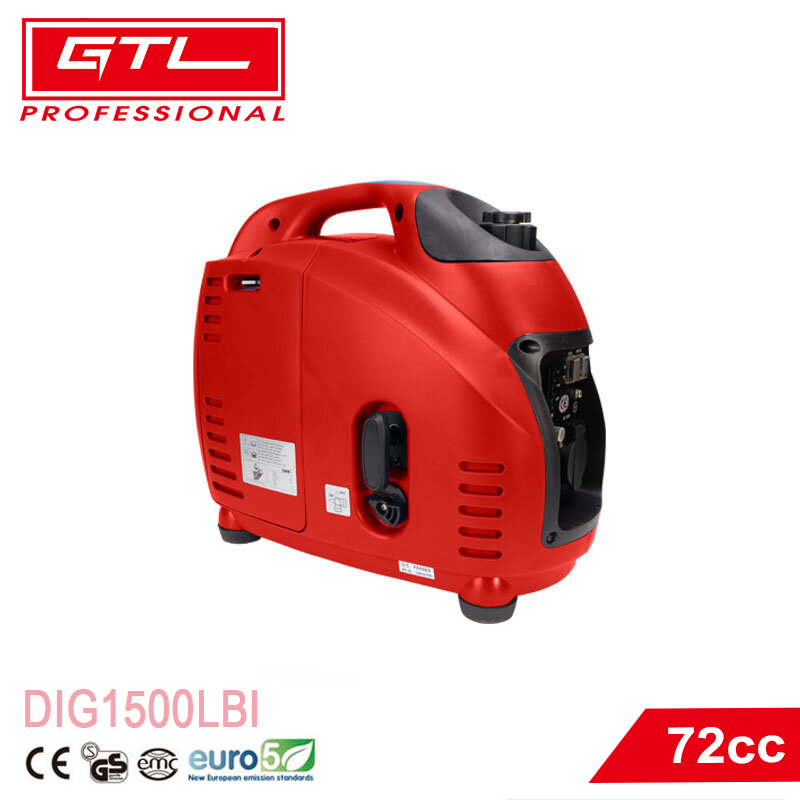

The DIG 1500LBI is a compact and versatile digital inverter generator designed for outdoor adventures and as a backup power source at home. With a 72cc 4-stroke engine, this generator offers a rated AC output of 1.2KW and a maximum output of 1.5KW, making it suitable for a variety of small to medium-sized devices.
Item No. | DIG 1500LBI |
Frequency (Hz) | 50 / 60 |
Rated AC Output(KW) | 1.2 |
Max. AC Output(KW) | 1.5 |
Rated AC Voltage (V) | 100, 120, 220,230, 240 |
Power Factor (cosφ) | 1 |
Engine Mode | XY147F |
Type | Forced Air-cooled, 4-storke,OHV |
Displacement(cc) | 72 |
Bore×Stroke (mm) | 47×41.5 |
Max. Output (KW/rpm) | 2.1 / 5000 |
Fuel | Unleaded Gasoline |
Fuel Tank Capacity (L) | 3.6 |
Continuous Operating Hours (h) | 4.3(100% Load) |
Oil | SAE 10W-30 Above SJ Grade |
Oil Capacity (L) | 0.6 |
Ignition System | C.D.I |
Starting System | Recoil Starter |
Operating Noise Level (7m)dB | 60 |
Net Dimension: L×W×Hmm | 492×262×406 |
Certificates | CE, GS,EMC,EURO V |
Versatile Frequency Compatibility: With a 50/60 Hz frequency rating, the generator is suitable for various power requirements and can be used in different regions with different power standards.
Efficient Power Output: It offers a rated AC output of 1.2 kW and a maximum AC output of 1.5 kW, ensuring reliable and efficient power supply for various applications.
Flexible Voltage Options: The generator supports multiple voltage options (100, 120, 220, 230, 240 V), making it adaptable to different electrical systems and user needs.
High Power Factor: A power factor of 1 indicates that the generator delivers maximum usable power to the load, ensuring high efficiency.
Robust Engine Design: Equipped with an XY147F engine, it features forced air-cooling, 4-stroke, and OHV technology for reliable and durable performance.
High Maximum Output: The generator can deliver a maximum output of 2.1 kW at 5000 rpm, providing ample power for demanding tasks.
Economical Fuel Consumption: It runs on unleaded gasoline and has a fuel tank capacity of 3.6 liters, allowing for extended use with a continuous operating time of 4.3 hours at 100% load.
Low Noise Operation: The operating noise level at 7 meters is only 60 dB, making it suitable for use in residential areas and sensitive environments.
Easy Maintenance: The generator requires SAE 10W-30 oil, with a capacity of 0.6 liters, and features a simple maintenance schedule.
Advanced Ignition and Starting Systems: Equipped with a C.D.I ignition system and a recoil starter, ensuring quick and reliable starting.
Long-Term Durability: With a bore and stroke of 47×41.5 mm, the engine is designed for long-term durability and consistent performance.
