Portable Gasoline 149.5 Cc 50/60 Hz 4 Storke Digital Inverter Generator Smart Generator for Camping (DIG 3500iE)
Category: Gasoline digital inverter generator
Price: $
  • Product description
  • Technical information
  • Smart features

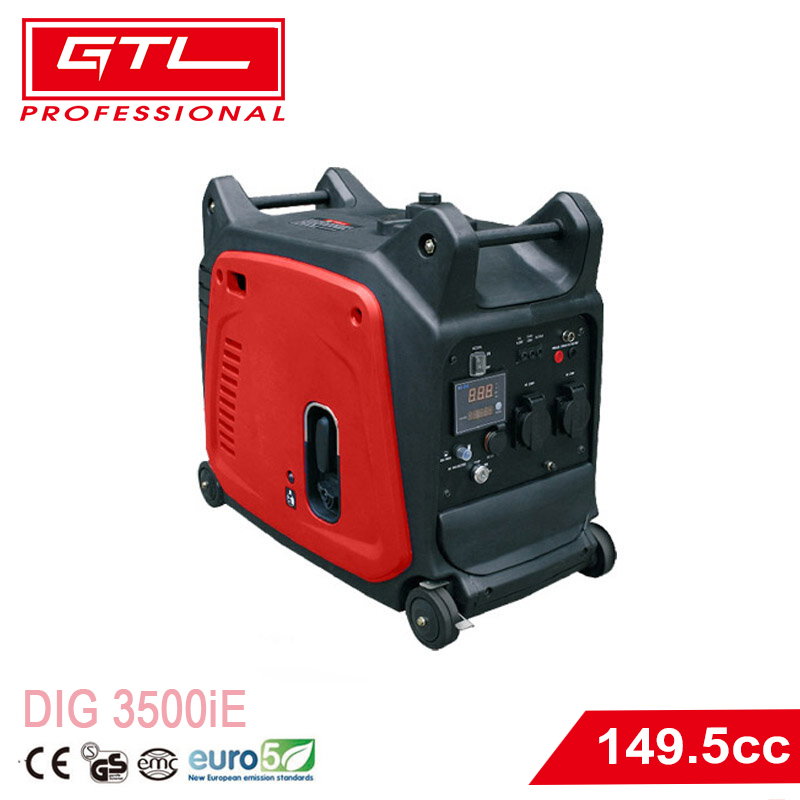

The DIG 3500iE is a portable and smart inverter generator designed for a variety of applications, from camping to home use. This generator is equipped with a 149.5cc 4-stroke engine that delivers a rated AC output of 3KW and a maximum AC output of 3.1KW, suitable for powering a wide range of devices.

Item No.DIG 3500iE
Frequency  (Hz) 50 / 60
Rated AC Output(KW)3
Max. AC Output(KW)3.1
Rated AC Voltage  (V)100, 120, 220,230, 240
Power Factor  (cosφ)1
Engine ModeXY157F-1
TypeForced Air-cooled, 4-storke,OHV
Displacement(cc)149.5
Bore×Stroke  (mm)57.4×57.8
Max. Output  (KW/rpm)4 / 5000
FuelUnleaded Gasoline
Fuel Tank Capacity  (L)7.5/6.3
Continuous Operating Hours  (h)4.1/3.4(100% Load)
OilSAE 10W-30 Above SJ Grade
Oil Capacity  (L)0.9
Ignition SystemC.D.I
Starting SystemRecoil Starter(Electric)
Operating Noise Level  (7m)dB62
Net Dimension:  L×W×Hmm614×341×506
CertificatesCE, GS,EMC,EURO V



Higher Power Output: With a rated AC output of 3 KW and a maximum output of 3.1 KW, the generator provides ample power for a wider range of applications.

Voltage Versatility: Offers multiple voltage options (100, 120, 220, 230, 240 V), making it adaptable to various electrical systems and requirements.

Efficient Engine: The XY157F-1 engine, with a displacement of 149.5 cc, is designed for high efficiency and performance.

Long-Lasting Operation: A fuel tank capacity that supports up to 4.1/3.4 hours of continuous operation at full load, ensuring extended use without frequent refueling.

Low Noise Emission: Operating at a noise level of 62 dB at 7 meters, the generator is suitable for both indoor and outdoor use without causing significant disturbance.

Compact and Portable: With dimensions that are easy to handle and a manageable size, the generator is portable and convenient to transport.

Safety and Reliability: Features a C.D.I ignition system and a recoil starter for reliable starting, along with certifications like CE, GS, EMC, and EURO V that ensure safety and compliance with environmental standards.

Easy Maintenance: The 0.9 L oil capacity and the use of SAE 10W-30 oil above SJ grade make maintenance straightforward and help in prolonging the engine's life.

User-Friendly Design: The generator is designed with user convenience in mind, ensuring easy operation and minimal hassle.

Environmental Compliance: Holding EURO V certification, the generator meets stringent environmental standards, making it a responsible choice for eco-conscious users.
