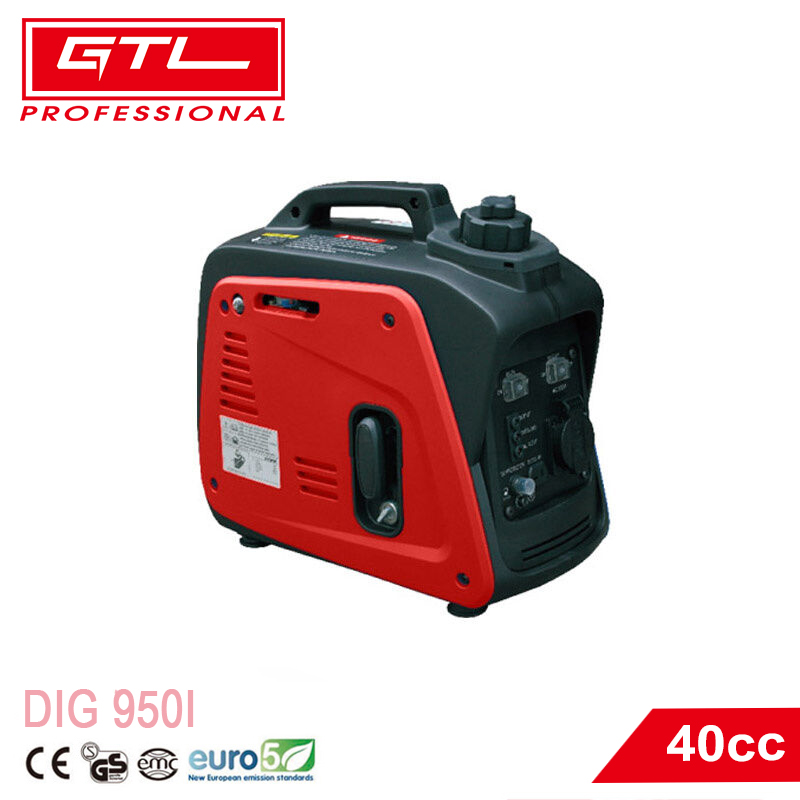

The DIG950I is a compact and powerful gasoline inverter generator designed for versatility and efficiency. It operates smoothly at dual frequencies of 50 Hz and 60 Hz, making it suitable for various power requirements. The DIG950I's combination of power, portability, efficiency, and compliance with safety and environmental standards, making it an excellent choice for a variety of uses where a reliable and compact power source is required.
Item No | DIG950I |
Frequency (Hz) | 50 / 60 |
Rated AC Output(KW) | 0.7 |
Max. AC Output(KW) | 0.8 |
Rated AC Voltage (V) | 100, 120, 220,230, 240 |
Power Factor (cosφ) | 1.0 |
Engine Mode | XY139F-6 |
Type | Forced Air-cooled, 4-storke,OHV |
Displacement(cc) | 40 |
Bore×Stroke (mm) | 44×39.5 |
Max. Output (KW/rpm) | 1.0 / 5000 |
Fuel | Unleaded Gasoline |
Fuel Tank Capacity (L) | 2.1 |
Continuous Operating Hours (h) | 4.1(100% Load) |
Oil | SAE 10W-30 Above SJ Grade |
Oil Capacity (L) | 0.3 |
Ignition System | C.D.I |
Starting System | Recoil Starter |
Operating Noise Level (7m)dB | 58 |
Net Dimension: L×W×Hmm | 395×209×355 |
Certificates | CE, GS,EMC,EURO V |
Dual Frequency Operation: Ideal for use in different regions with varying power grid standards.
Efficient Power Delivery: Offers a rated AC output of 0.7 kW and can reach a maximum output of 0.8 kW, suitable for small to medium power needs.
Versatile Voltage Options: Compatible with a range of voltages, ensuring adaptability to various electrical systems.
High Power Factor: A power factor of 1.0 ensures maximum power transfer to the load.
Compact Engine Design: The 40cc engine is lightweight and portable, making it easy to transport and maneuver.
Quiet Operation: With an operating noise level of 58 dB at 7 meters, it's perfect for noise-sensitive environments.
Long Continuous Operation: Can run for up to 4.1 hours at 100% load on a full tank of fuel.
Easy Maintenance: Requires SAE 10W-30 oil, with a capacity of 0.3 liters, simplifying maintenance routines.
Reliable Ignition and Starting: Features a C.D.I ignition system and a recoil starter for dependable operation.
Fuel Efficiency: With a 2.1-liter fuel tank, it offers extended use without frequent refueling.
Safety and Environmental Standards: Certified with CE, GS, EMC, and EURO V, ensuring safety and environmental compliance.
Durable Construction: The forced air-cooled engine is built for long-lasting performance.
Maximized Performance: Designed to deliver a maximum output of 1.0 kW at 5000 rpm, ensuring powerful performance when needed.
Wide Availability of Fuel: Operates on widely accessible unleaded gasoline, ensuring convenience for users.
