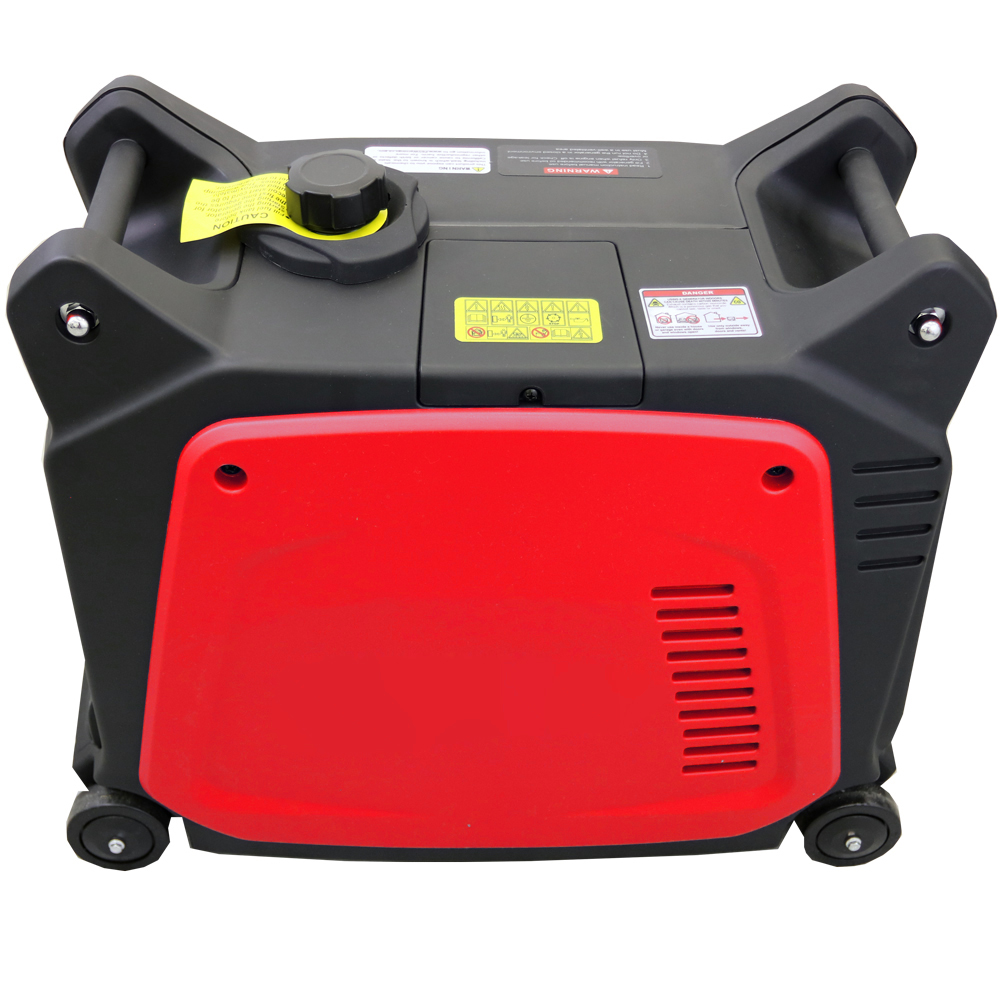

The DIG2600i(E) gasoline inverter generator is a versatile and efficient power solution designed for a range of applications, from home use to commercial settings. It is a versatile and efficient power solution designed for a range of applications, from home use to commercial settings.
Item No. | DIG2600i(E) | |
Engine | Frequency: | 50/60 Hz |
Rated AC output: | 2.3 kw | |
Max.AC output: | 2.5 kw | |
Rated AC Voltage: | 100,120,230,240 | |
Power Factor: | 1 | |
Engine Model: | XY152F-3 | |
Type: | Forced Air-cooled,4-stroke,OHV | |
Displacement: | 125 cc | |
Bore x Stroke: | 52.4x57.8mm | |
Max.Output: | 3.4KW/5000rpm | |
Fuel: | Unleaded Gasoline | |
Generator | Fuel Tank Capacity: | 7.5/6.3 L |
Contunous Operating Hours: | 5.5/4.6h (100% Load) | |
Oil: | SAE 10W-30 Above SJ Grade | |
Oil Capacity: | 0.9 L | |
Ignition System: | C.D.I | |
Starting System: | Recoil Starter(Electric) | |
Operating Noise Level (7m): | 60 dB | |
Dimensions | Net Dimension: | 614*341*506 mm |
Overall Dimension: | 635*360*530 mm | |
Net weight: | 33/37 | |
Gross Weight: | 37/40 | |
20GP/40GP/40HQ: | 228/456/456 | |
Cert. | CE,GS,EPA | |
Standard Features | Large-capacity air cleaner: | N |
Large-capacity fuel tank: | N | |
Large-capacity fuel muffle: | Y | |
Fuel indicator: | Y | |
Voltmeter: | N | |
Auto voltage adjustor | Y | |
Oil alert system | Y | |
Circuit breaker without fuse: | Y | |
Circuit protector: | Y | |
Battery tray: | N | |
4-wheel dolly kit: | N |
Efficient Power Output: With a rated AC output of 2.3 kW and a maximum output of 2.5 kW, the generator is capable of handling a variety of power needs efficiently.
Versatile Voltage Options: The ability to output 100, 120, 230, or 240 volts makes it suitable for different power requirements and regions.
Compact and Portable Design: With dimensions and weights that are easy to handle, the generator is designed for portability and ease of use.
Forced Air-cooled Engine: The engine is designed to prevent overheating, ensuring continuous and reliable operation.
Low Operating Noise: At only 60 dB at a distance of 7 meters, the generator provides a quiet operation, suitable for residential and commercial use.
Long Continuous Operating Hours: With a fuel tank capacity that supports 5.5 to 4.6 hours of operation at full load, the generator offers extended use without frequent refueling.
Safety and Convenience Features: The inclusion of an oil alert system, circuit breaker, and circuit protector ensures safe operation and protection against electrical faults.
Auto Voltage Adjustor: This feature ensures a stable voltage output, protecting connected devices from voltage fluctuations.
Environmentally Friendly: The generator complies with CE, GS, and EPA certifications, indicating adherence to environmental and safety standards.
User-friendly Interface: Features like a fuel indicator and the absence of a large-capacity fuel muffle contribute to a user-friendly experience.
