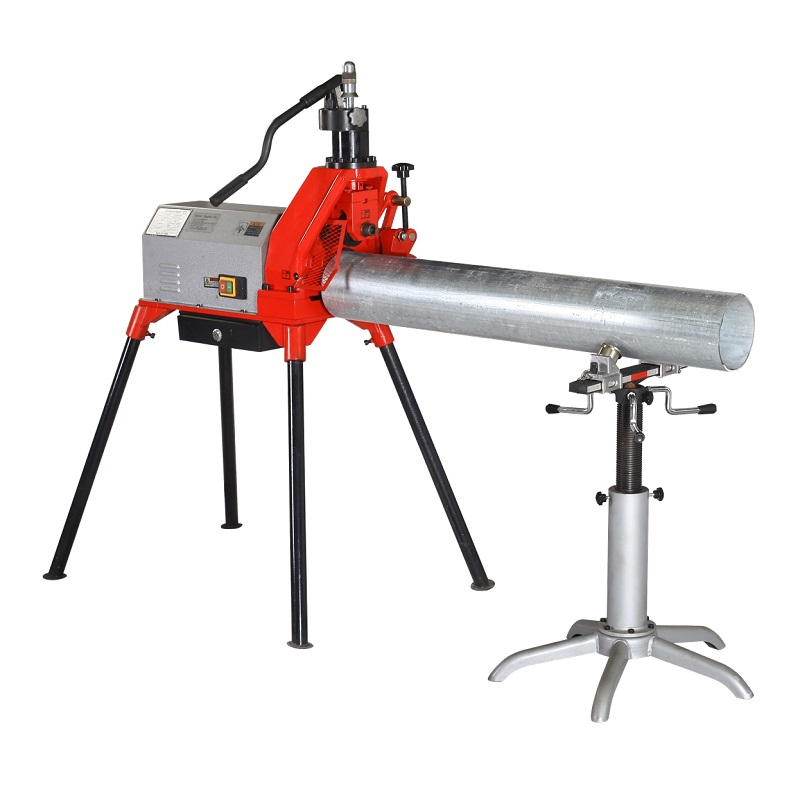

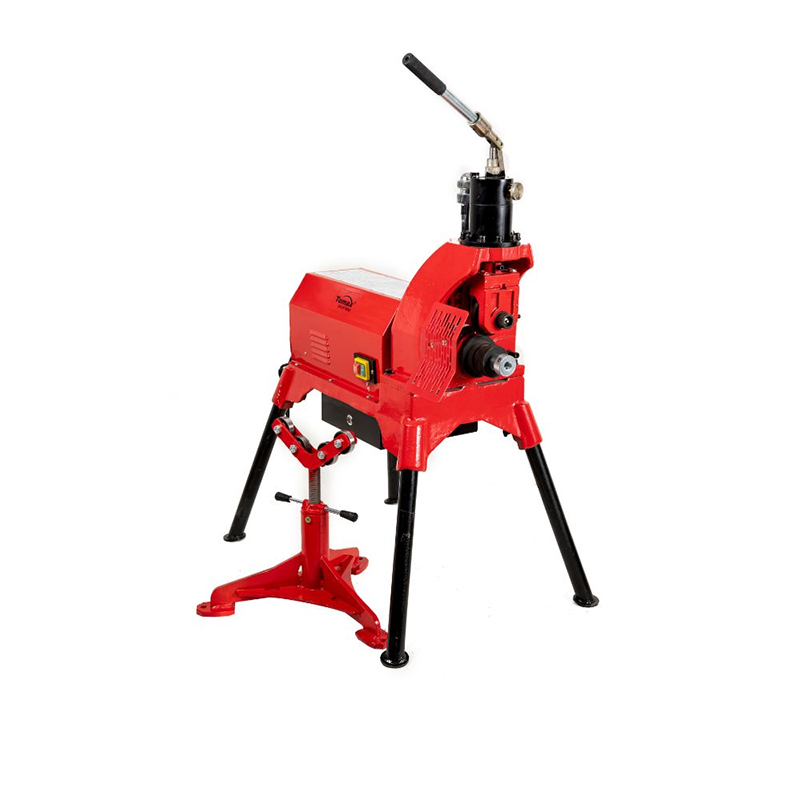

This machine is suitable for rolling groove processing of low-carbon pipes such as galvanized steel pipes, seamless steel pipes and stainless steel pipes of various diameters.

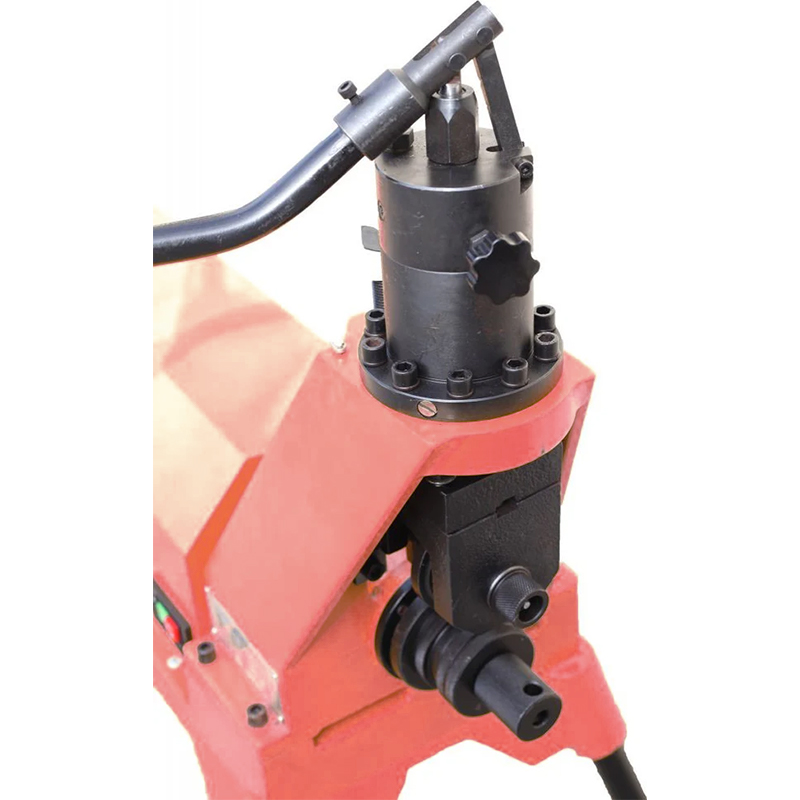

The machine adopts an advanced hydraulic system (with overload protection and stroke positioning functions) and high-quality and efficient hard-tooth surface gear reduction technology, which has more durable quality and more accurate machining accuracy. Sturdy hydraulic-pump with precisely formed grips for ideal handling. Compact and very stable machine design and fine adjustment for groove depth and regulation.

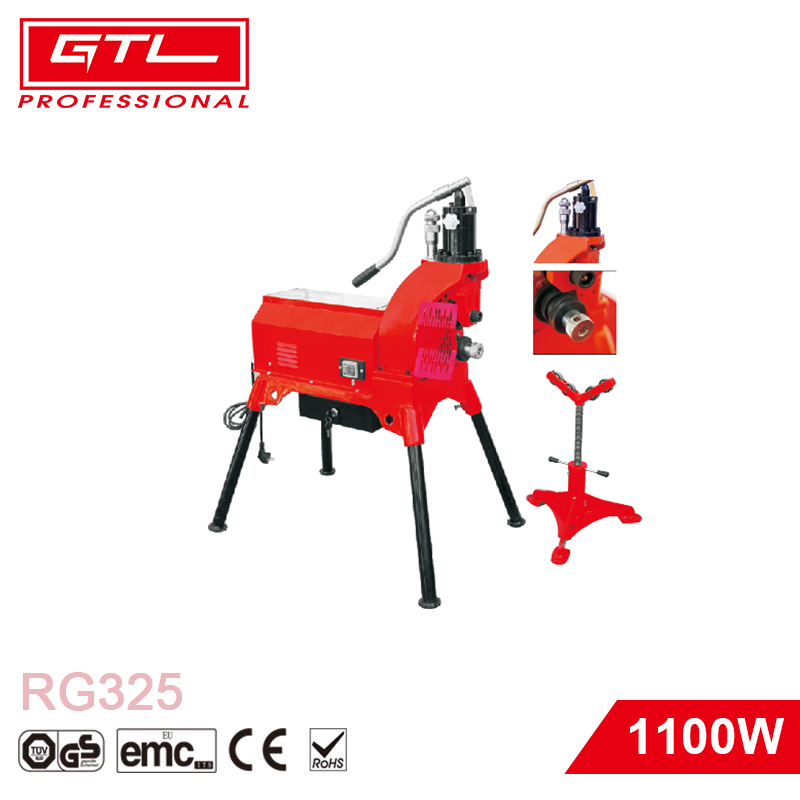

| ITEM NO.: | RG325 |
| VOLTAGE/FREQUENCY: | 110V/230V～50Hz/60Hz |
| INPUT POWER; | 1100W |
| SPINDLE SPEED: | 23/MIN |
| WORKING PRESSURE: | 8000KG |
| MIN DIA.: | 2" |
| MIN DIA.: | 12" |
| MAX. THICKNESS: | Ø10MM |
| PACKING: | WOOD BOX PACKING |
| ACC: KNURLING ROLLER:60-76MM/89-165MM/219-325MM PINCH ROLLER:60-76MM/89-165MM/219-325MM | |

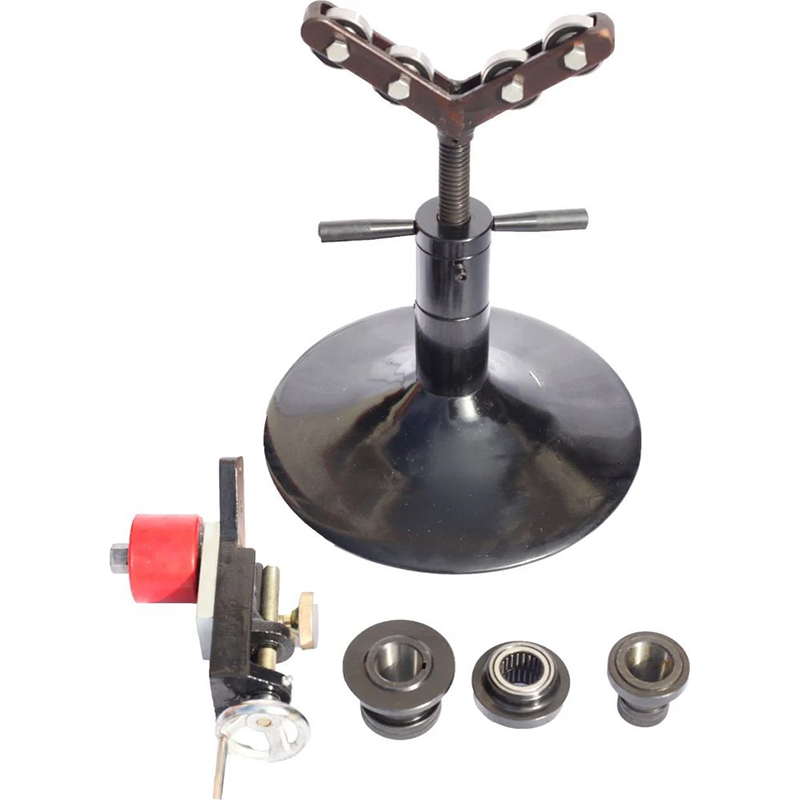

Wide Pipe Adaptability: This roll groover supports 2"-12" (60-325mm) pipe diameter and max 10mm thickness, covering most industrial pipe sizes. Equipped with 3 sets of rollers (60-76mm/89-165mm/219-325mm), it fits steel pipes in fire protection, water supply and large-scale pipeline projects.
High-Power & Strong Performance: Powered by a 1100W motor with 23r/min stable spindle speed, it delivers 8000KG high working pressure—ensuring precise, uniform grooves even on thick-walled pipes. Dual-voltage (110V/230V, 50/60Hz) design suits global construction site power supplies.

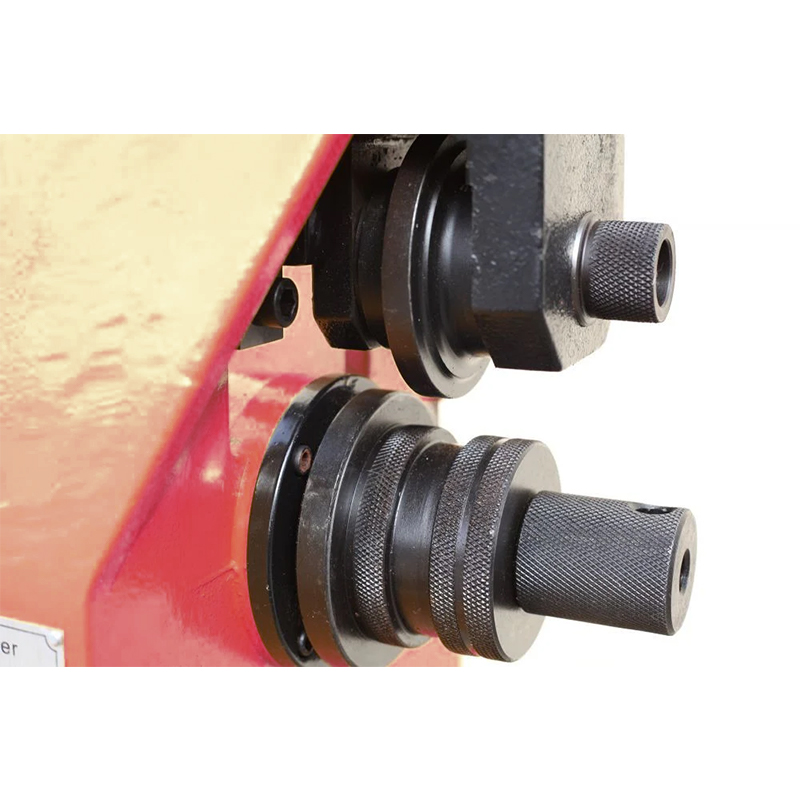

Core Grooving Function for Efficient Connection: As a professional pipe grooving tool, it creates tight grooves for clamp-type connections (replacing welding), reducing installation time. The knurling & pinch roller combination ensures firm pipe fixation and smooth grooving, improving on-site work efficiency.
Durable Package & Practical Design: Packed in a solid wood box for safe transport/storage. Its portable tripod frame and compact structure allow easy movement on job sites, making it a reliable choice for heavy-duty pipe fitting projects.
