This self-prime pumps are suitable for pumpingclean water, lube oil or diesel oil. They are particularlysuitable for domestic orindustrial applications such assupply water from well, diesel station, oil circlingsystem andincreasing of water or oil pressure
Max Temperature of Fluid up to +80℃Max Pressure 10bar, Max Ambient Temperature up to 40℃

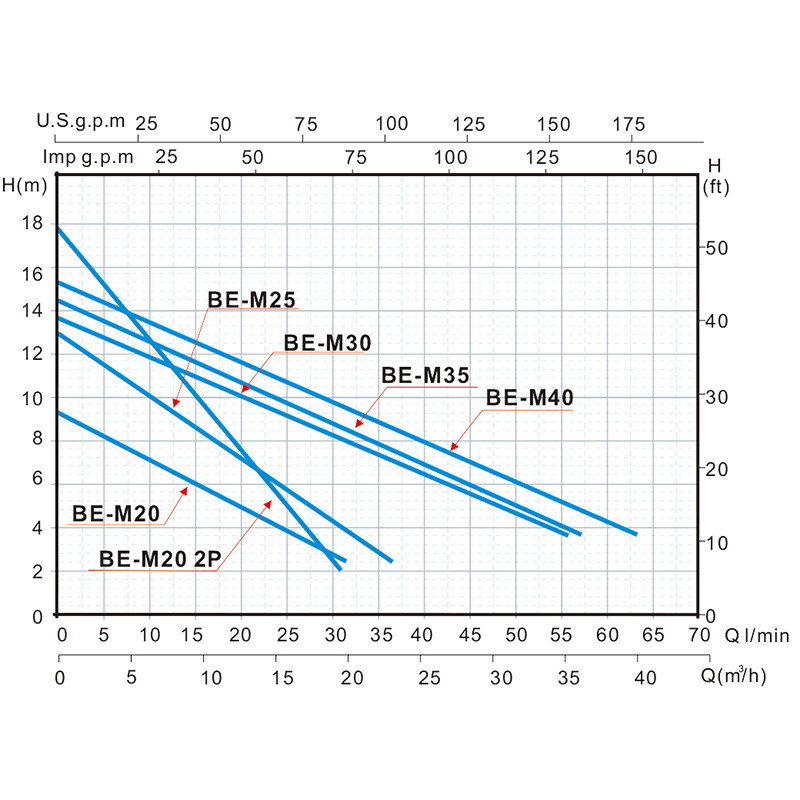

| TECHNICAL DATA | ||||||||||||||||||||
TYPE | Input Power | Current (A) | Capacitior (μF) | H.max(m) | Q.max (I/min) | Size (inch) | S.Head(m) | Capacity L/min | ||||||||||||
| KW | HP | 10 | 20 | 30 | 40 | 50 | 60 | 70 | ||||||||||||
| BE-M20 2P | 0.45 | 0.6 | 2.2 | 16 | 16 | 30 | 20*20 | 9 | Total head(m) | 11 | 5 | |||||||||
| BE-M20 4P | 0.33 | 0.45 | 1.6 | 12 | 10 | 30 | 20*20 | 9 | 7 | 6 | 4 | 2 | ||||||||
| BE-M25 | 0.4 | 0.55 | 2 | 12 | 12 | 35 | 25*25 | 9 | 9 | 7 | 5 | 3 | 1 | |||||||
| BE-M30 | 0.7 | 0.95 | 3 | 20 | 14 | 55 | 30*30 | 9 | 12 | 9 | 7 | 5 | 3 | 1 | ||||||
| BE-M35 | 0.8 | 1.1 | 3.4 | 20 | 16 | 58 | 35*35 | 9 | 14 | 12 | 10 | 7 | 5 | 4 | ||||||
| BE-M40 | 0.8 | 1.1 | 3.4 | 20 | 14 | 60 | 40*40 | 9 | 12 | 11 | 9 | 8 | 7 | 5 | 1 | |||||
| BE-M20S 2P | 0.45 | 0.6 | 2.2 | 16 | 16 | 30 | 20*20 | 9 | 11 | 5 | ||||||||||
| BE-M20S 4P | 0.33 | 0.45 | 1.6 | 12 | 10 | 30 | 20*20 | 9 | 7 | 6 | 4 | 2 | ||||||||
| BE-M25S | 0.4 | 0.55 | 2 | 12 | 12 | 35 | 25*25 | 9 | 9 | 7 | 5 | 3 | 1 | |||||||
| BE-M30S | 0.7 | 0.95 | 3 | 20 | 14 | 55 | 30*30 | 9 | 12 | 9 | 7 | 5 | 3 | 1 | ||||||
| BE-M35S | 0.8 | 1.1 | 3.4 | 20 | 16 | 58 | 35*35 | 9 | 14 | 12 | 10 | 7 | 5 | 4 | ||||||
| BE-M40S | 0.8 | 1.1 | 3.4 | 20 | 14 | 60 | 40*40 | 9 | 12 | 11 | 9 | 8 | 7 | 5 | 1 | |||||
Wide Application Compatibility: Suitable for pumping clean water, lube oil, and diesel oil, this pump serves both domestic and industrial scenarios, including well water supply, diesel station fuel transfer, oil circulation systems, and water/oil pressure boosting.
Robust Working Conditions: Engineered to handle fluid temperatures up to 80°C and pressures of 10 bar, with a maximum ambient temperature of 40°C, ensuring reliable performance in demanding operating environments.
Self-Priming Design for Easy Operation: Features self-priming capability up to 9 meters, eliminating the need for manual priming and enabling quick startup for water or oil transfer tasks.
Model-Specific Performance & Compact Structure: Available in multiple models (e.g., BE-M20 2P: 0.45KW, 30L/min max flow), with a direct-drive, space-saving structure that delivers stable flow rates and head pressures tailored to diverse transfer needs.
