This self-prime pumps are suitable for pumpingclean water, lube oil or diesel oil. They are particularlysuitable for domestic orindustrial applications such assupply water from well, diesel station, oil circlingsystem andincreasing of water or oil pressure
Max Temperature of Fluid up to +80℃Max Pressure 10bar, Max Ambient Temperature up to 40℃
| TECHNICAL DATA | ||||||||||||||||||||
TYPE | Input Power | Current (A) | Capacitior (μF) | H.max(m) | Q.max (I/min) | Size (inch) | S.Head(m) | Capacity L/min | ||||||||||||
Kw | HP | 10 | 20 | 30 | 40 | 50 | 60 | 70 | ||||||||||||
| BE-M20 2P | 0.45 | 0.6 | 2.2 | 16 | 16 | 30 | 20*20 | 9 | Total head(m) | 11 | 5 | |||||||||
| BE-M20 4P | 0.33 | 0.45 | 1.6 | 12 | 10 | 30 | 20*20 | 9 | 7 | 6 | 4 | 2 | ||||||||
| BE-M25 | 0.4 | 0.55 | 2 | 12 | 12 | 35 | 25*25 | 9 | 9 | 7 | 5 | 3 | 1 | |||||||
| BE-M30 | 0.7 | 0.95 | 3 | 20 | 14 | 55 | 30*30 | 9 | 12 | 9 | 7 | 5 | 3 | 1 | ||||||
| BE-M35 | 0.8 | 1.1 | 3.4 | 20 | 16 | 58 | 35*35 | 9 | 14 | 12 | 10 | 7 | 5 | 4 | ||||||
| BE-M40 | 0.8 | 1.1 | 3.4 | 20 | 14 | 60 | 40*40 | 9 | 12 | 11 | 9 | 8 | 7 | 5 | 1 | |||||
| BE-M20S 2P | 0.45 | 0.6 | 2.2 | 16 | 16 | 30 | 20*20 | 9 | 11 | 5 | ||||||||||
| BE-M20S 4P | 0.33 | 0.45 | 1.6 | 12 | 10 | 30 | 20*20 | 9 | 7 | 6 | 4 | 2 | ||||||||
| BE-M25S | 0.4 | 0.55 | 2 | 12 | 12 | 35 | 25*25 | 9 | 9 | 7 | 5 | 3 | 1 | |||||||
| BE-M30S | 0.7 | 0.95 | 3 | 20 | 14 | 55 | 30*30 | 9 | 12 | 9 | 7 | 5 | 3 | 1 | ||||||
| BE-M35S | 0.8 | 1.1 | 3.4 | 20 | 16 | 58 | 35*35 | 9 | 14 | 12 | 10 | 7 | 5 | 4 | ||||||
| BE-M40S | 0.8 | 1.1 | 3.4 | 20 | 14 | 60 | 40*40 | 9 | 12 | 11 | 9 | 8 | 7 | 5 | 1 | |||||

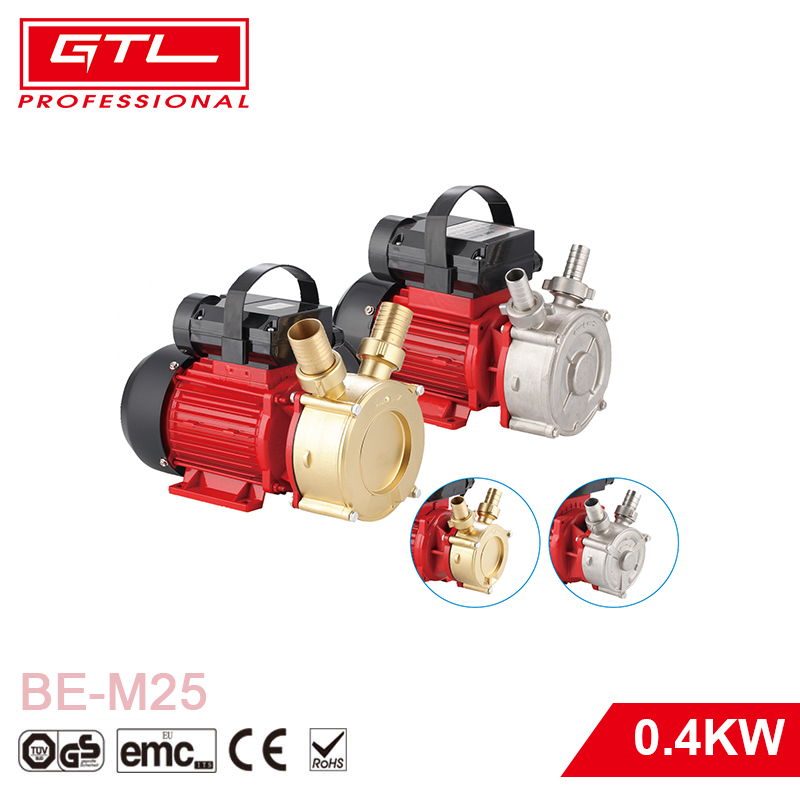

Balanced Power & Efficiency: Equipped with a 0.4kW (0.55HP) motor and 2A current, this BE-M25 pump provides reliable power while maintaining energy-efficient operation, suitable for continuous daily use.
Practical Flow & Head Performance: Delivers a maximum flow of 35L/min and a maximum head of 12m, offering stable liquid transfer capacity to meet the demands of household water supply and light industrial fluid handling.
9m Self-Priming Convenience: Features a 9m self-priming height, eliminating the need for pre-filling fluid before startup. This design ensures easy, quick deployment across various working scenarios.
Multi-Fluid & Scenario Compatibility: Compatible with clean water, lube oil and diesel oil, it serves versatile applications: well water extraction, diesel transfer at fuel stations, oil circulation, and liquid pressure boosting.
