This self-prime pumps are suitable for pumpingclean water, lube oil or diesel oil. They are particularlysuitable for domestic orindustrial applications such assupply water from well, diesel station, oil circlingsystem andincreasing of water or oil pressure
Max Temperature of Fluid up to +80℃Max Pressure 10bar, Max Ambient Temperature up to 40℃
| TECHNICAL DATA | ||||||||||||||||||||

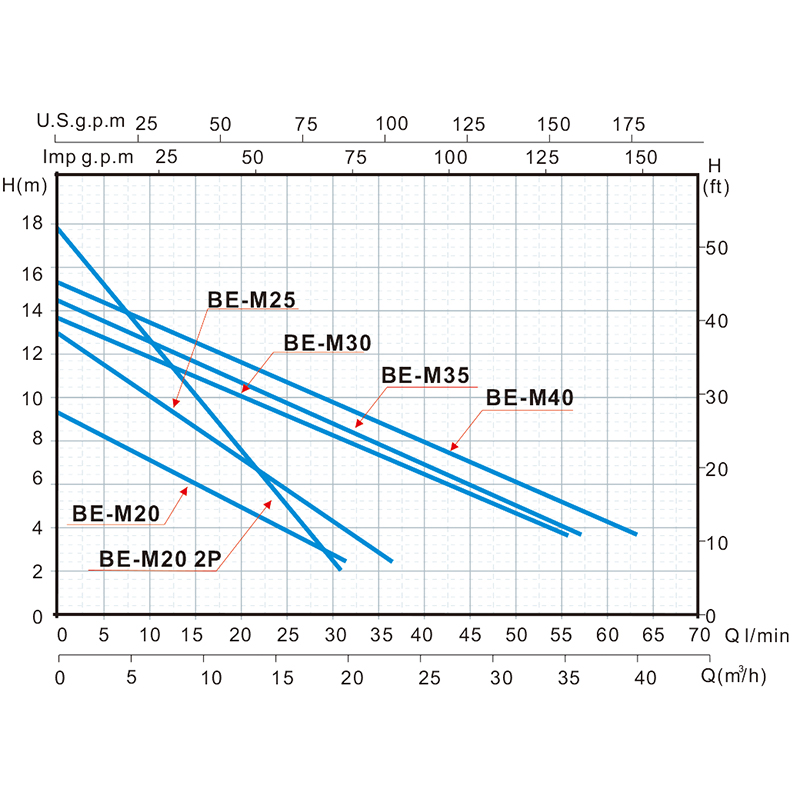

TYPE | Input Power | Current (A) | Capacitior (μF) | H.max(m) | Q.max (I/min) | Size (inch) | S.Head(m) | Capacity L/min | ||||||||||||
| Kw | HP | 10 | 20 | 30 | 40 | 50 | 60 | 70 | ||||||||||||
| BE-M20 2P | 0.45 | 0.6 | 2.2 | 16 | 16 | 30 | 20*20 | 9 | Total head(m) | 11 | 5 | |||||||||
| BE-M20 4P | 0.33 | 0.45 | 1.6 | 12 | 10 | 30 | 20*20 | 9 | 7 | 6 | 4 | 2 | ||||||||
| BE-M25 | 0.4 | 0.55 | 2 | 12 | 12 | 35 | 25*25 | 9 | 9 | 7 | 5 | 3 | 1 | |||||||
| BE-M30 | 0.7 | 0.95 | 3 | 20 | 14 | 55 | 30*30 | 9 | 12 | 9 | 7 | 5 | 3 | 1 | ||||||
| BE-M35 | 0.8 | 1.1 | 3.4 | 20 | 16 | 58 | 35*35 | 9 | 14 | 12 | 10 | 7 | 5 | 4 | ||||||
| BE-M40 | 0.8 | 1.1 | 3.4 | 20 | 14 | 60 | 40*40 | 9 | 12 | 11 | 9 | 8 | 7 | 5 | 1 | |||||
| BE-M20S 2P | 0.45 | 0.6 | 2.2 | 16 | 16 | 30 | 20*20 | 9 | 11 | 5 | ||||||||||
| BE-M20S 4P | 0.33 | 0.45 | 1.6 | 12 | 10 | 30 | 20*20 | 9 | 7 | 6 | 4 | 2 | ||||||||
| BE-M25S | 0.4 | 0.55 | 2 | 12 | 12 | 35 | 25*25 | 9 | 9 | 7 | 5 | 3 | 1 | |||||||
| BE-M30S | 0.7 | 0.95 | 3 | 20 | 14 | 55 | 30*30 | 9 | 12 | 9 | 7 | 5 | 3 | 1 | ||||||
| BE-M35S | 0.8 | 1.1 | 3.4 | 20 | 16 | 58 | 35*35 | 9 | 14 | 12 | 10 | 7 | 5 | 4 | ||||||
| BE-M40S | 0.8 | 1.1 | 3.4 | 20 | 14 | 60 | 40*40 | 9 | 12 | 11 | 9 | 8 | 7 | 5 | 1 | |||||

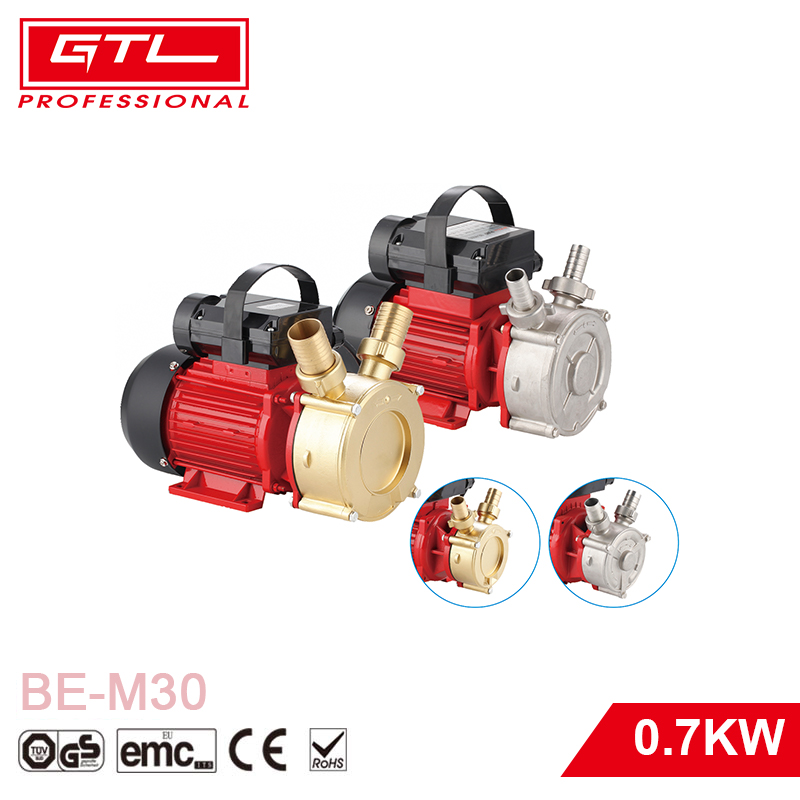

High-Performance 0.7KW Motor: Driven by a 0.7kW (0.95HP) robust motor with 3A current, the BE-M30 delivers strong power for heavy-duty liquid transfer, supporting continuous and stable operation in industrial environments.
Large Flow & High Head Capacity: Boasts a maximum flow of 55L/min and a maximum head of 14m, efficiently handling high-volume liquid transfer while maintaining sufficient pressure for long-distance or elevated delivery needs.
9m Self-Priming for Easy Deployment: Features 9m self-priming capability, removing the need for pre-filling fluid before startup. This design ensures quick, hassle-free setup for well water, diesel and oil applications.
Versatile Industrial & Domestic Use: Compatible with clean water, lube oil and diesel oil, it suits diverse scenarios: industrial oil circulation systems, diesel station transfer, well water supply, and liquid pressure boosting for both home and factory use.
