This self-prime pumps are suitable for pumpingclean water, lube oil or diesel oil. They are particularlysuitable for domestic orindustrial applications such assupply water from well, diesel station, oil circlingsystem andincreasing of water or oil pressure
Max Temperature of Fluid up to +80℃Max Pressure 10bar, Max Ambient Temperature up to 40℃
| TECHNICAL DATA | ||||||||||||||||||||

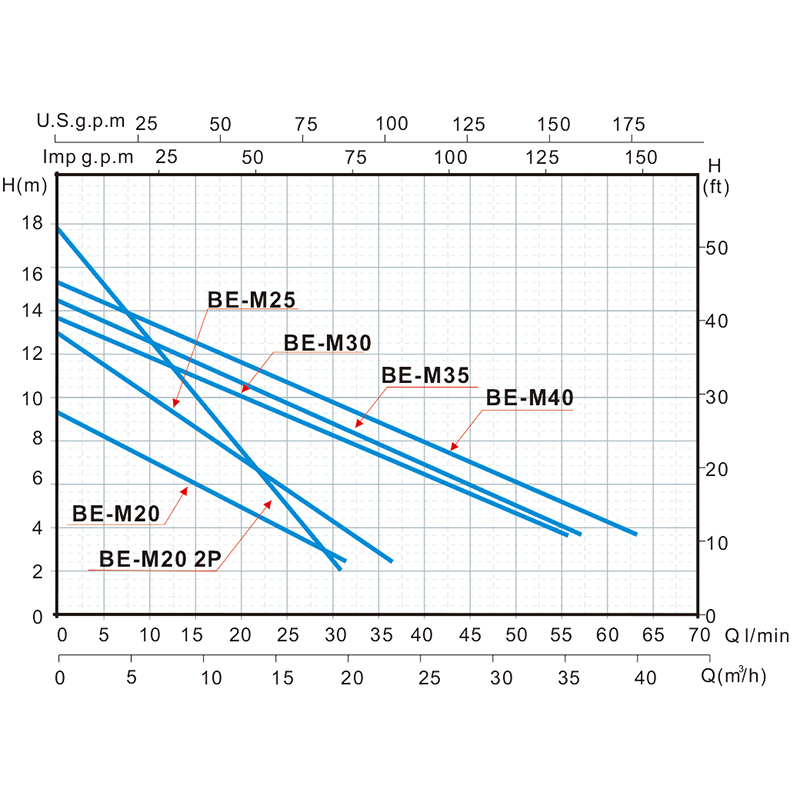

TYPE | Input Power | Current (A) | Capacitior (μF) | H.max(m) | Q.max (I/min) | Size (inch) | S.Head(m) | Capacity L/min | ||||||||||||
| Kw | HP | 10 | 20 | 30 | 40 | 50 | 60 | 70 | ||||||||||||
| BE-M20 2P | 0.45 | 0.6 | 2.2 | 16 | 16 | 30 | 20*20 | 9 | Total head(m) | 11 | 5 | |||||||||
| BE-M20 4P | 0.33 | 0.45 | 1.6 | 12 | 10 | 30 | 20*20 | 9 | 7 | 6 | 4 | 2 | ||||||||
| BE-M25 | 0.4 | 0.55 | 2 | 12 | 12 | 35 | 25*25 | 9 | 9 | 7 | 5 | 3 | 1 | |||||||
| BE-M30 | 0.7 | 0.95 | 3 | 20 | 14 | 55 | 30*30 | 9 | 12 | 9 | 7 | 5 | 3 | 1 | ||||||
| BE-M35 | 0.8 | 1.1 | 3.4 | 20 | 16 | 58 | 35*35 | 9 | 14 | 12 | 10 | 7 | 5 | 4 | ||||||
| BE-M40 | 0.8 | 1.1 | 3.4 | 20 | 14 | 60 | 40*40 | 9 | 12 | 11 | 9 | 8 | 7 | 5 | 1 | |||||
| BE-M20S 2P | 0.45 | 0.6 | 2.2 | 16 | 16 | 30 | 20*20 | 9 | 11 | 5 | ||||||||||
| BE-M20S 4P | 0.33 | 0.45 | 1.6 | 12 | 10 | 30 | 20*20 | 9 | 7 | 6 | 4 | 2 | ||||||||
| BE-M25S | 0.4 | 0.55 | 2 | 12 | 12 | 35 | 25*25 | 9 | 9 | 7 | 5 | 3 | 1 | |||||||
| BE-M30S | 0.7 | 0.95 | 3 | 20 | 14 | 55 | 30*30 | 9 | 12 | 9 | 7 | 5 | 3 | 1 | ||||||
| BE-M35S | 0.8 | 1.1 | 3.4 | 20 | 16 | 58 | 35*35 | 9 | 14 | 12 | 10 | 7 | 5 | 4 | ||||||
| BE-M40S | 0.8 | 1.1 | 3.4 | 20 | 14 | 60 | 40*40 | 9 | 12 | 11 | 9 | 8 | 7 | 5 | 1 | |||||

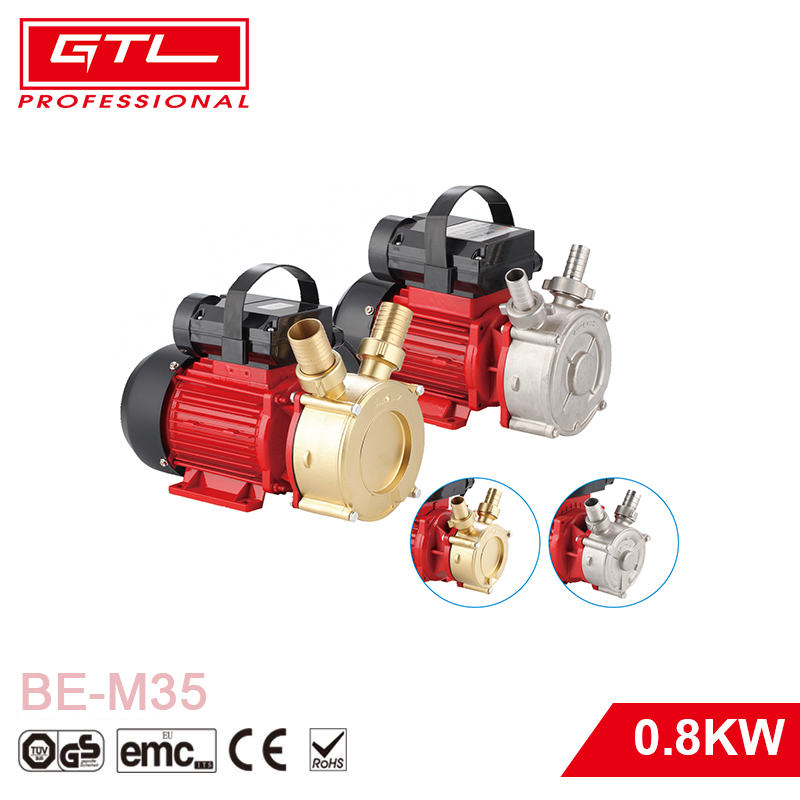

Robust 0.8kW Motor for Heavy Duty: Powered by a 0.8kW (1.1HP) high-torque motor with 3.4A current, the BE-M35 ensures strong, stable power for demanding industrial liquid transfer and long-duration operation.
High Flow & Elevated Head Performance: Delivers an impressive maximum flow of 58L/min and a maximum head of 16m, efficiently handling large-volume fluid transfer while providing reliable pressure for elevated or long-distance delivery.
9m Self-Priming for Effortless Use: Features a 9m self-priming height, eliminating the need for pre-filling fluid before startup. This design enables quick, convenient deployment in well, diesel station and industrial settings.
Versatile Multi-Scenario Application: Compatible with clean water, lube oil and diesel oil, it excels in diverse uses: industrial oil circulation, diesel fuel transfer, well water supply, and liquid pressure boosting for both commercial and industrial needs.
