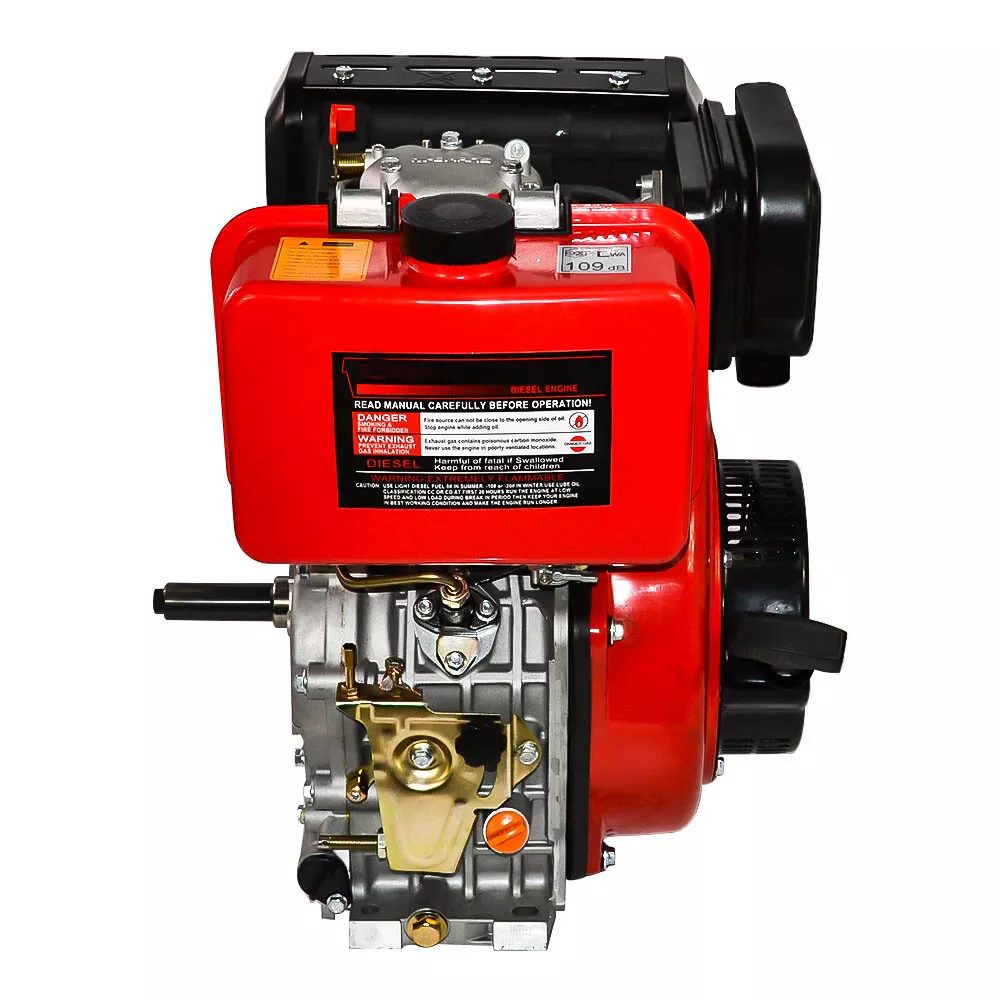

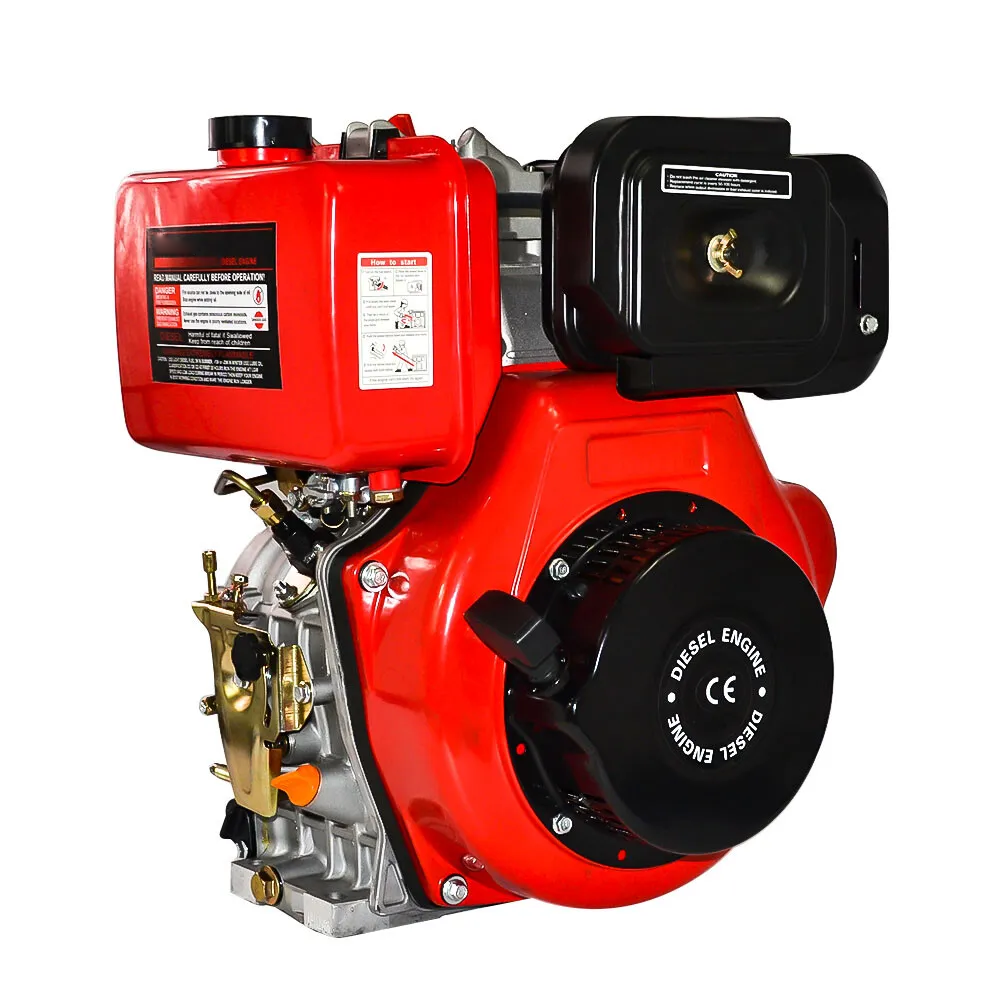

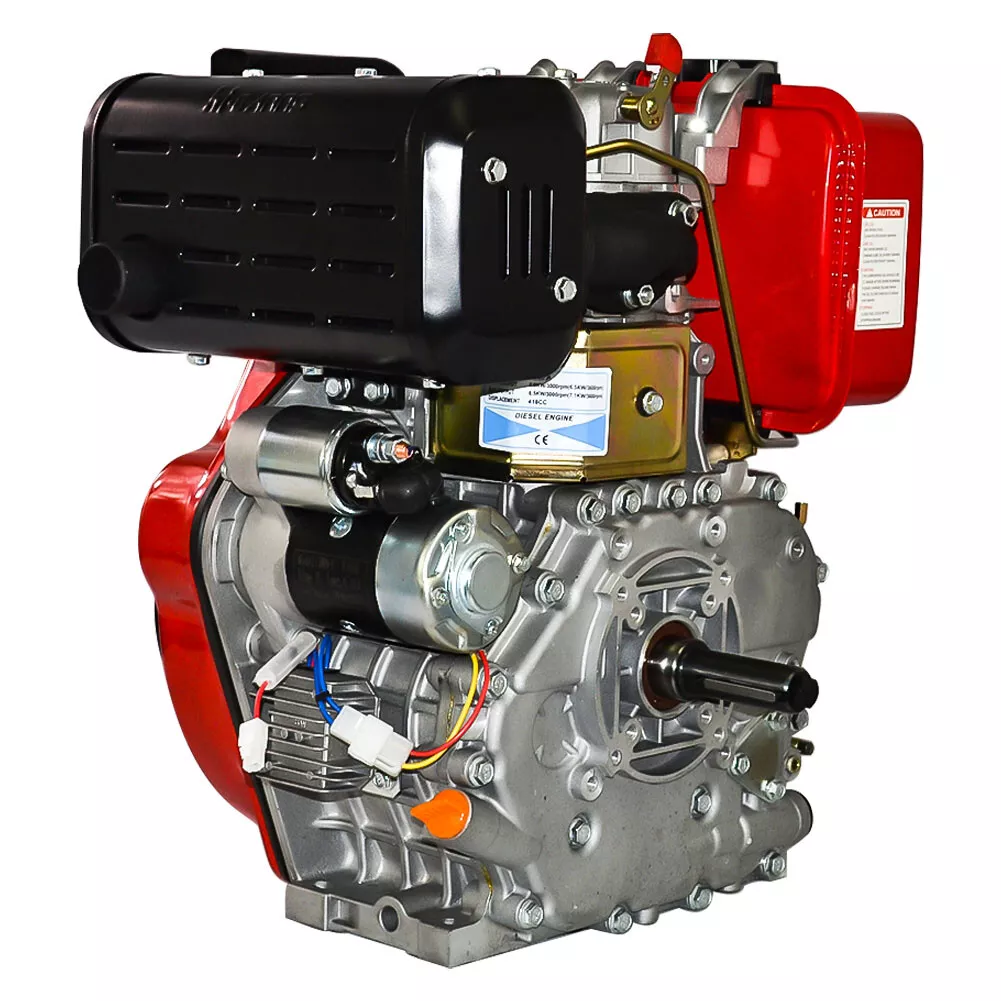

4 Stroke 3.8HP/5.2HP Diesel OHV Engine Big Power(DH170F/DH178F)
Category: Diesel engine
Price: $
  • Product description
  • Technical information
  • Smart features

Elevate your power generation capabilities with the 4 Stroke Diesel OHV Engines from GTL TOOLS. These engines, available in both DH170F and DH178F models, are designed for reliability, efficiency, and durability in a variety of applications.

Item No.DH170FDH178F
Engine typesinlge cylinder ,4-stroke ,Air-cooled;diesel enginesinlge cylinder ,4-stroke ,Air-cooled;diesel engine
Bore*stroke70 x 55(mm)78 x 62(mm)
Volume211cm³296cm³
Continue(3.8HP)2.8kw(5.2HP)3.8kw
Maximum power output(4.2HP)3.0kw(5.7HP)4.2kw
Speed3600rpm3600rpm
Min.fuel consumption265g/kw/h265g/kw/h
Lubricate systemPressure flyPressure fly
Cooling systemAir-cooledAir-cooled
Starting systemRecoil/ElectricRecoil/Electric
Combustion systemDirect injectionDirect injection
Fuel capacity2.5L3.5L
Engine oil system capacity0.75L1.1L
Fuel type0# -10# -20#0# -10# -20#
Lube oil typeCD Grade or SAE 10w -30 SAE 15w -40CD Grade or SAE 10w -30 SAE 15w -40
OptionOil bath Air cleanerOil bath Air cleaner
Dimensions420 x 360 x 460(mm)460 x 440 x 500(mm)
Net weight28kg(Recoil)/33kg(Electric)33kg(Recoil)/38kg(Electric)


Lubrication and Cooling Systems: Pressure fly lubrication and air-cooling systems ensure smooth operation and longevity.

Starting System: Options for both recoil and electric starting, providing flexibility based on user preference.

Direct Injection Combustion System: For efficient fuel use and cleaner emissions.

Fuel Capacity: 2.5L for DH170F and 3.5L for DH178F, allowing for extended operation times.

Engine Oil System Capacity: 0.75L for DH170F and 1.1L for DH178F, ensuring adequate lubrication.

Fuel and Lube Oil Types: Compatible with a range of fuel types and CD Grade or SAE lubricants for versatility.
