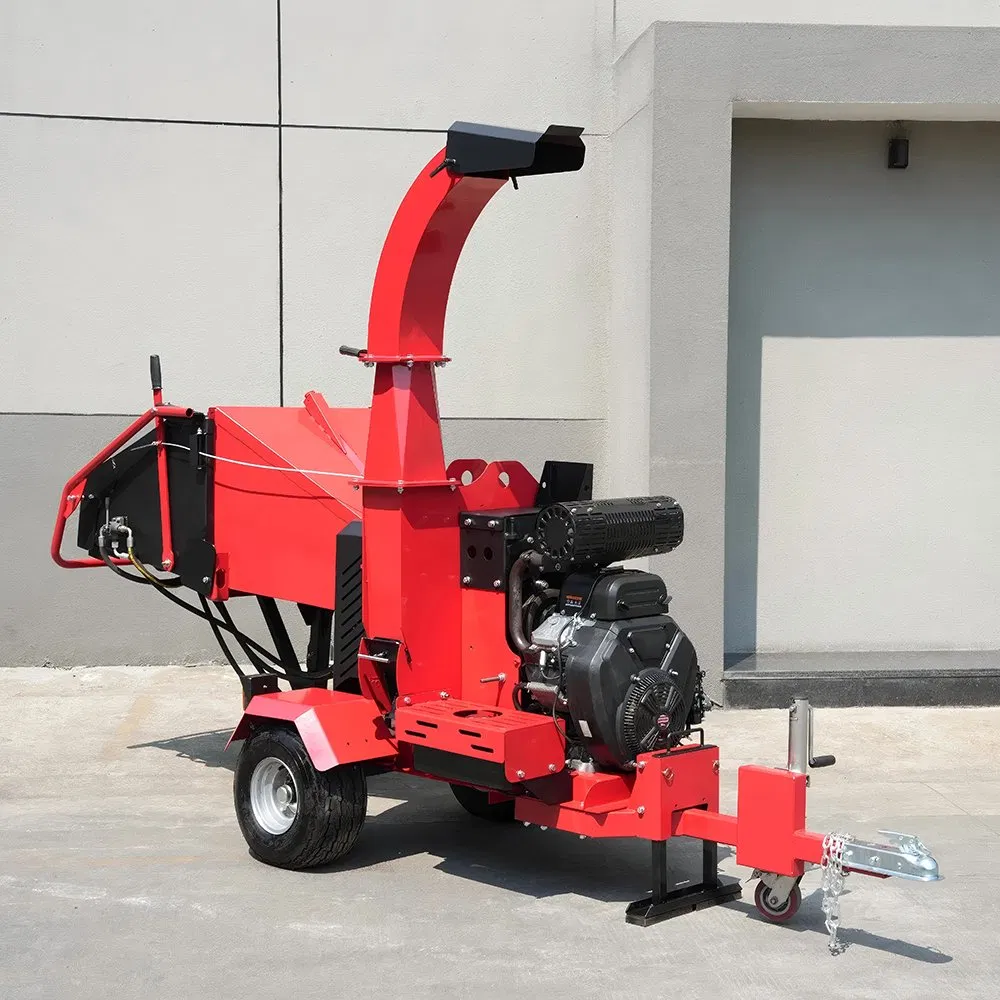

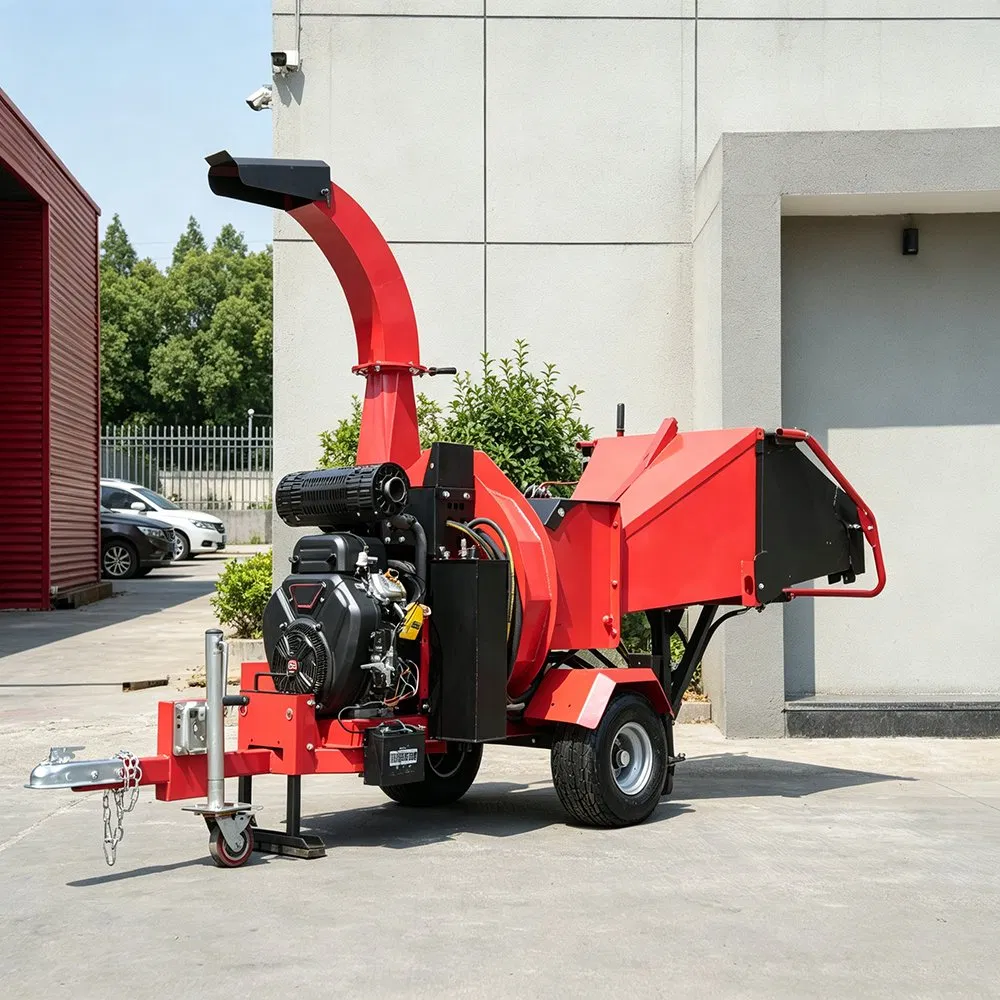

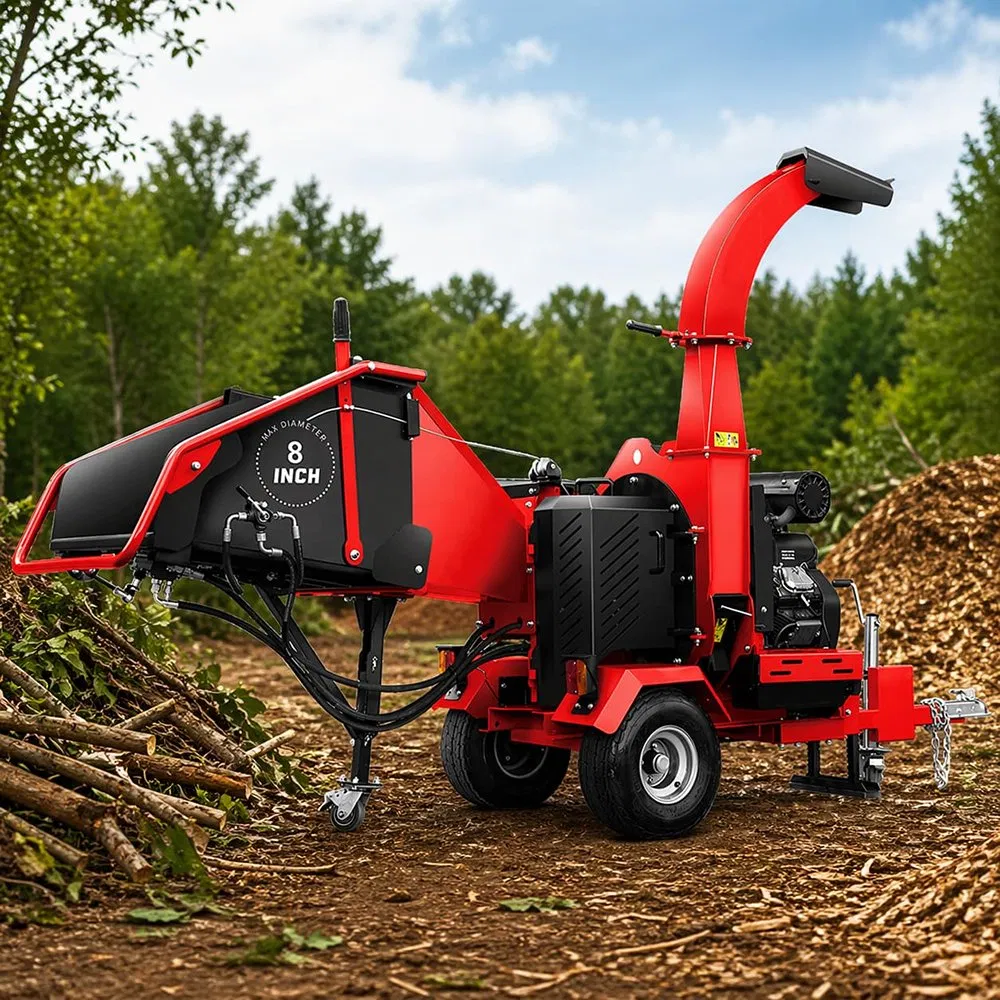

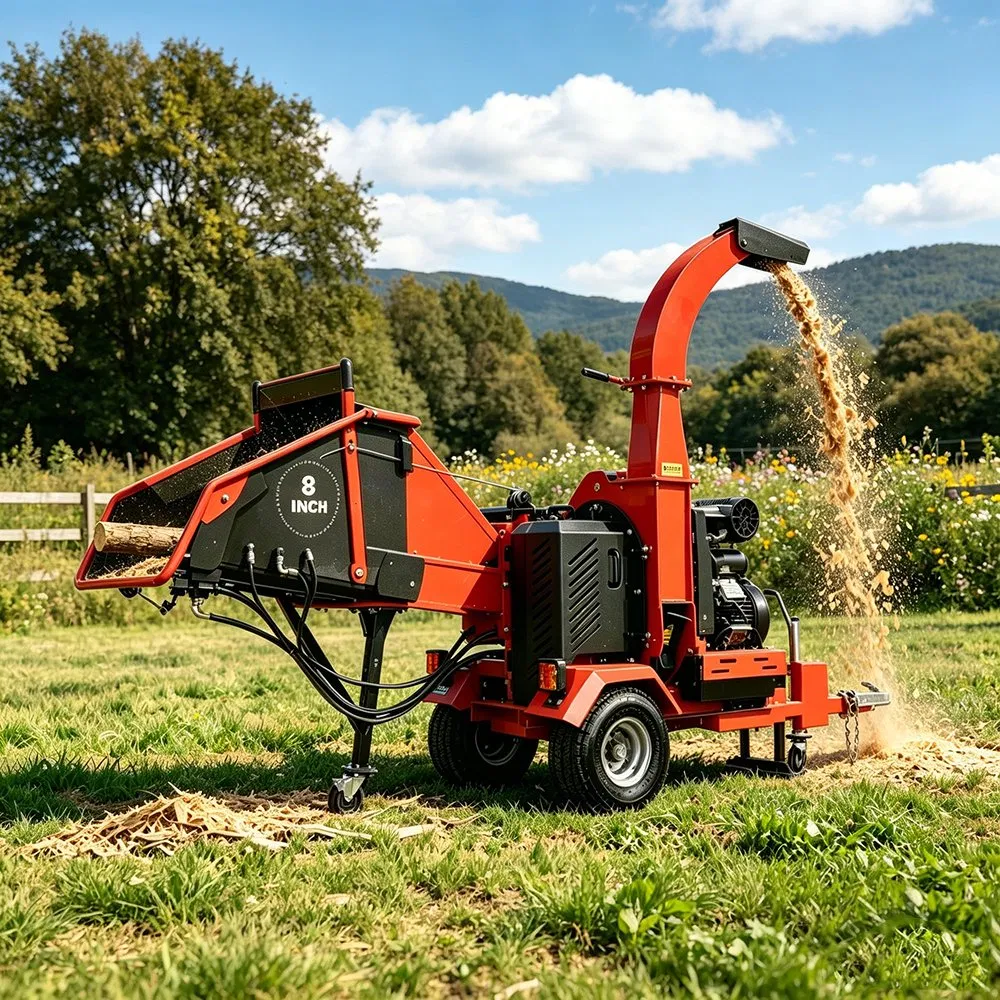

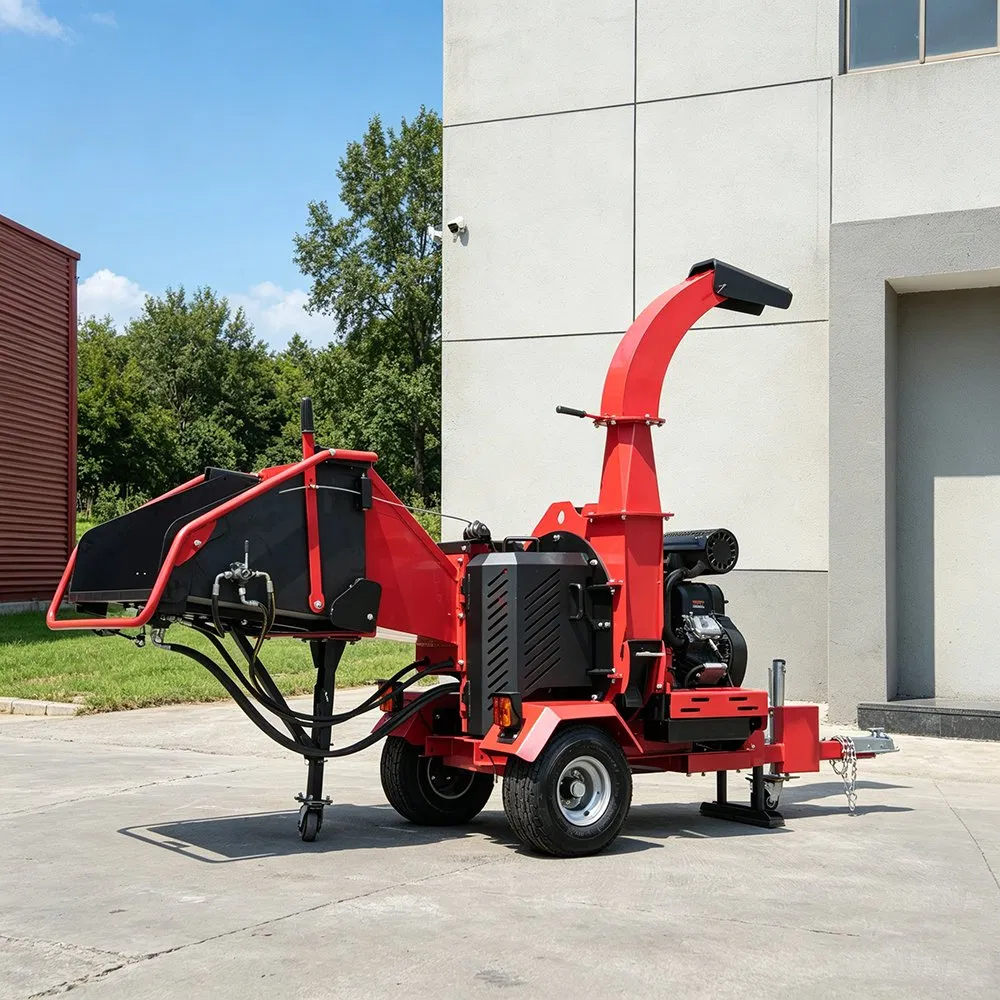

SZ34SF 8-inch towable wood chipper is a heavy-duty landscaping & forestry machine specially designed for professional users, including garden contractors, orchard farmers, municipal greening teams and forest processing yards. Equipped with a high-power 34HP gasoline engine and full hydraulic automatic feeding mechanism, this wood chipper can crush thick tree trunks, dry branches, vines, lawn grass and garden waste into uniform wood chips and mulch in one pass. The mobile trailer structure allows convenient towing by cars or ATVs, perfectly matching outdoor field work scenarios.
| Item | Parameter |
|---|---|
| Item No. | SZ34SF |
| Max Chipping Diameter | 200mm (8 inch) |
| Engine Displacement | 999cc |
| Engine Type | 34HP, 4-stroke air-cooled gasoline engine |
| Fuel Tank Volume | 17L |
| Hydraulic Oil Tank Volume | 19.7L |
| Starting Mode | Electronic Start |
| Main Cutting Blade | 2pcs, each blade length 250mm |
| Flying Shred Blades | 24pcs, each blade length 130mm |
| Hydraulic Pump Displacement | 10ml/r |
| Max Hydraulic Pressure | 10Mpa |
| Infeed Throat Opening | 270*210mm |
| Feed Hopper Dimension | 850*550mm |
| Feeding Structure | 1 clutch, 1 pulley wheel, double hydraulic feeding rollers |
| Wheel Size | 18.5-8.5-8 |
| Core Function | Hydraulic auto-feed; dual-purpose for wood chipping & grass shredding |
Powerful 34HP Gasoline Power System
Adopt 999cc large-displacement 4-stroke air-cooled gasoline engine, delivering stable 34HP strong torque. Air cooling design avoids overheating during long continuous working. Matched with 17L large fuel tank, it supports all-day outdoor operation without frequent refueling. Electronic start design cancels complicated hand-pulling start, greatly lowering operation difficulty.
Full Hydraulic Auto-Feeding System
Built-in professional hydraulic circulation system with 10ml/r hydraulic pump, max working pressure reaches 10Mpa. Double feeding rollers grab wood materials automatically and steadily, no need to manually push heavy logs, effectively prevent branch rebound and avoid hand injury risks. Large feed hopper (850550mm) and 270210mm wide infeed throat improve feeding efficiency greatly.
Mobile Towable Trailer Frame
Complete trailer chassis with 18.5-8.5-8 heavy-duty tires, standard towing hitch and safety chain. Auxiliary universal caster and support jacks keep the machine stable during chipping. You can tow this chipper to orchards, woodlands, roadsides and any outdoor job sites freely, no fixed power supply required.
Wide Application Scenarios
Commercial landscaping company: process pruning waste of park trees
Fruit orchards: crush fruit tree branches after seasonal trimming
Municipal greening engineering: roadside & community tree waste disposal
Biomass fuel processing: make wood chips for boiler combustion
Farm & ranch: produce organic mulch and livestock padding material
