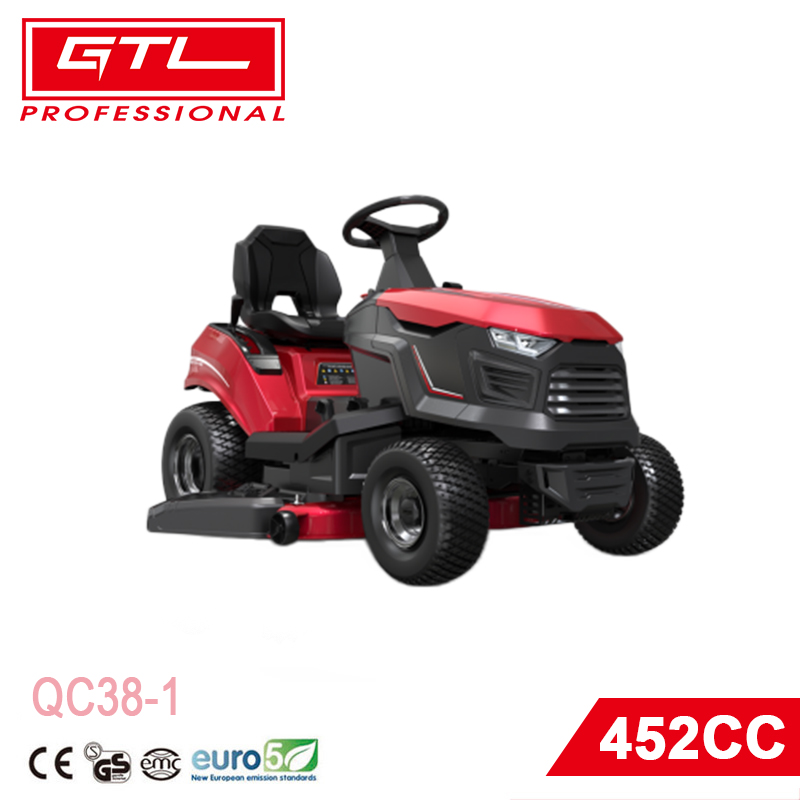

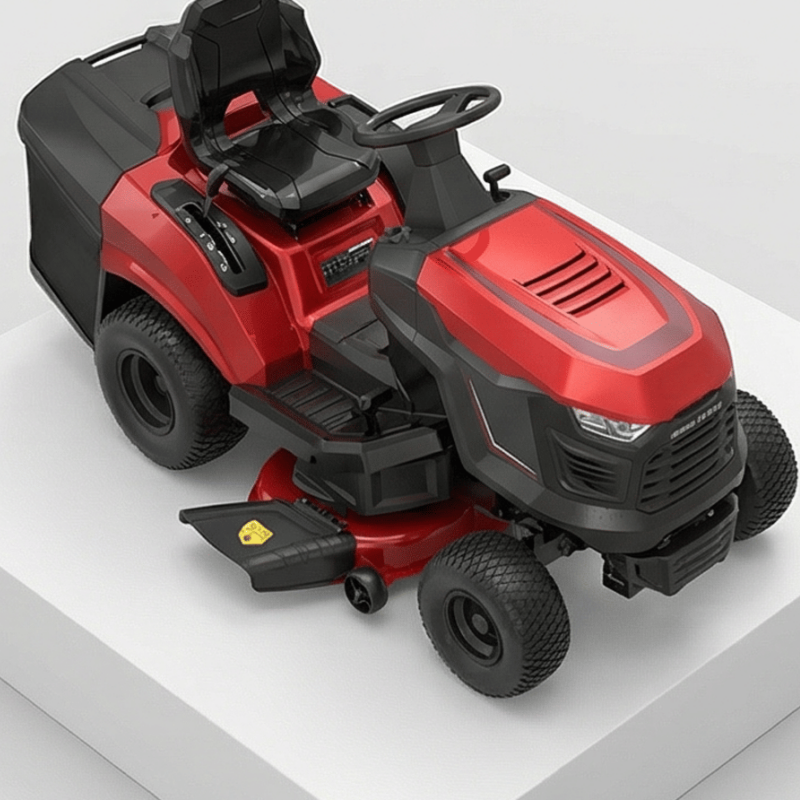

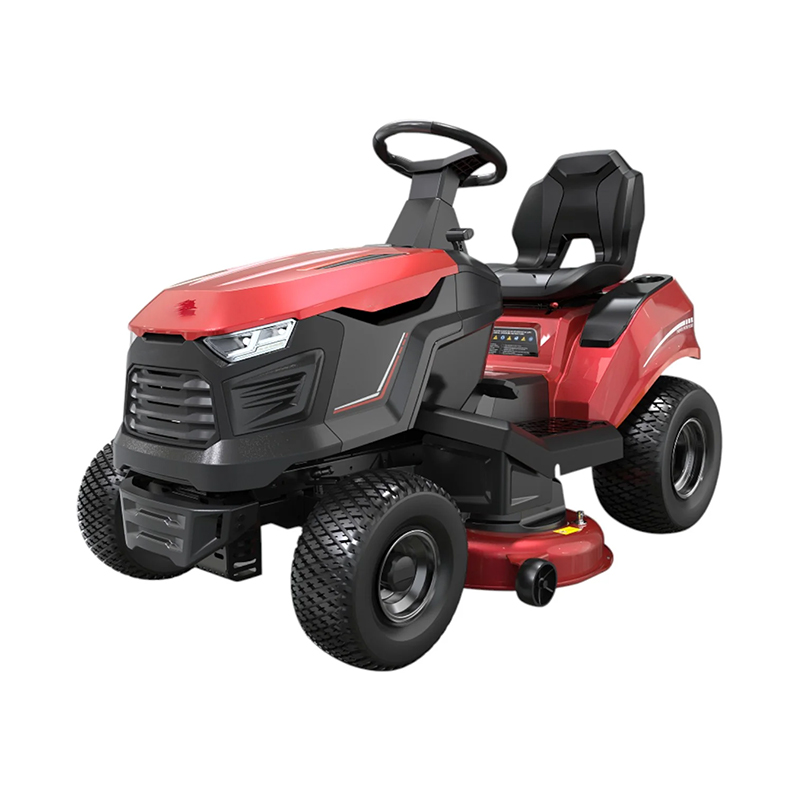

This ride-on lawn mower is equipped with a 452CC Ducar engine outputting 9.2kW power with electric start. It uses hydrostatic transmission and a robust welded frame, boasting a 55cm small turning radius. With 98cm cutting width, twin blades and 7 height settings, it handles areas up to 15000m2. It also has adjustable seat, ergonomic wheel, headlights and cup holder for comfortable and convenient operation.
Item No.: | QV38-1 |
Engine brand: | Ducar |
Engine displacement: | 452CC |
Power MAX(kW): | 9.2KW |
Engine feature: | OHV |
Cylinders: | 1/cast-iron sleeve |
Starting: | Electric |
Fuel capacity: | 7.5L |
Adjustable sliding seat: | yes |
Ergonomic steering wheel: | yes |
Powder-coated cutting deck: | yes |
Visible fuel level: | yes |
Headlights: | yes |
Cup dolder: | yes |
TRANSMISSION | |
Type: | Hydrostatic |
Max Speed forward: | 8-10km/h |
Max Speed reverse: | 4-6km/h |
CHASSIS | |
Frame: | Robotically welded |
Tyres front: | 15*6.00-6 |
Tyres rear: | 18*8.50-8 |
Turning radius: | 55cm |
MOWER | |
Cutting width: | 98cm |
Maximum working area: | 15000m2 |
Mower deck: | Steel |
Collector capacity: | NA |
Cutting height: | 30~90mm |
Cutting height positions: | 7 |
Blades: | Twin |
Catching type: | Side discharge |

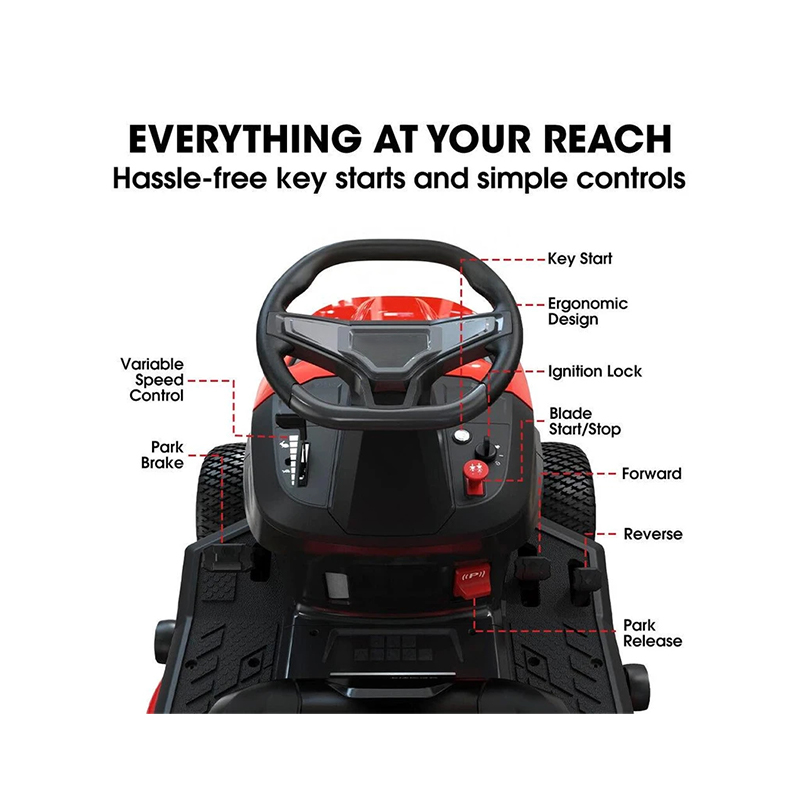

Comfortable & Humanized Design:It comes with an adjustable sliding seat, ergonomic steering wheel, headlights and cup holder. The visible fuel level brings great convenience for daily operation and use.
Powerful & Reliable Engine:Fitted with a 452CC Ducar OHV single-cylinder engine with cast-iron sleeve. It delivers a maximum power of 9.2kW and supports electric starting for stable and easy startup.
Smooth Transmission & Flexible Chassis:Adopts hydrostatic transmission with adjustable forward and reverse speed. Robotically welded frame ensures sturdiness, and the 55cm turning radius enables flexible steering in narrow spaces.
Efficient Mowing Performance:Featured with 98cm cutting width and 7-level adjustable cutting height from 30mm to 90mm. Twin blades and side discharge design support large-area mowing up to 15000m2 efficiently.
