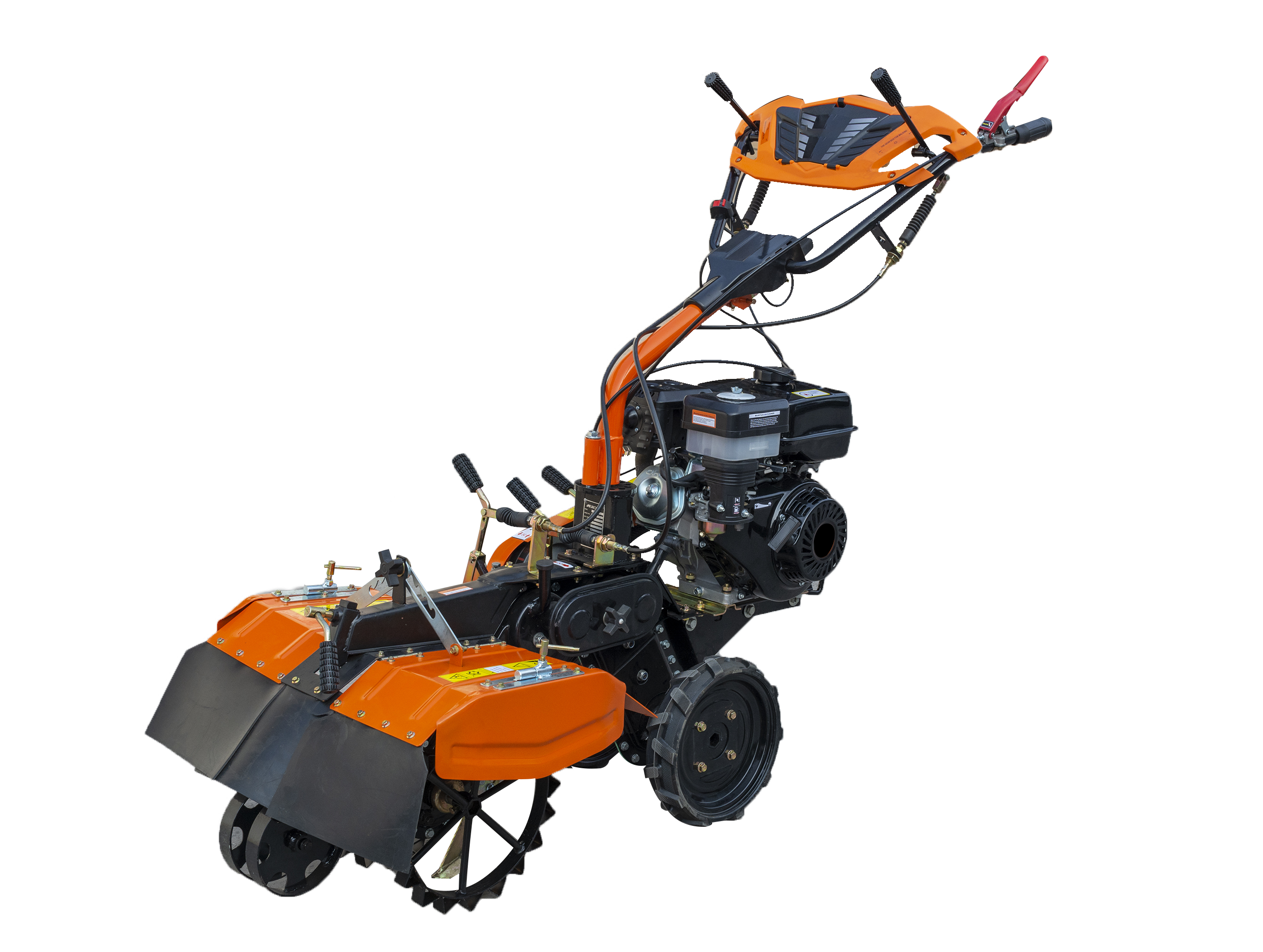

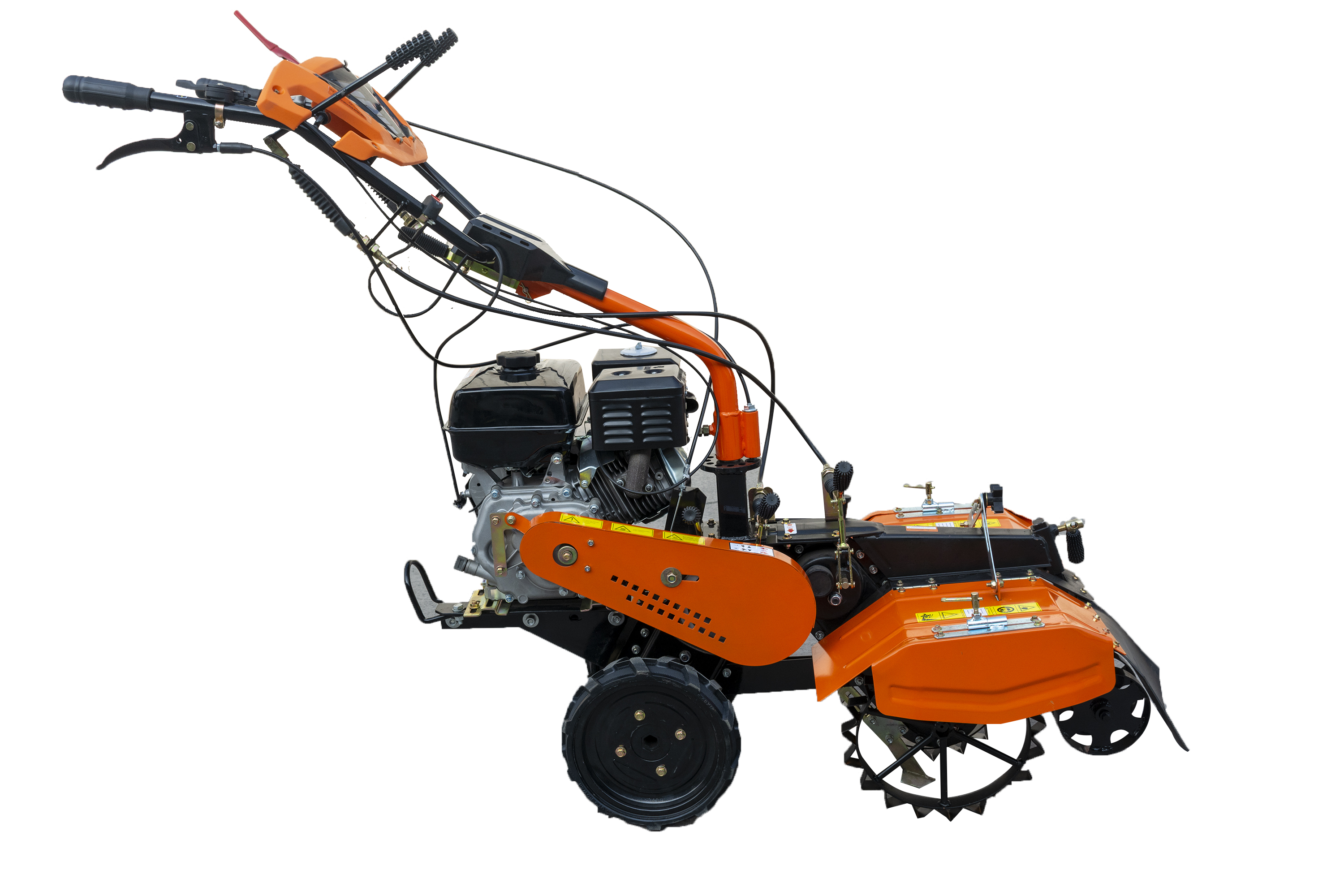

The 3TGQ-4E Multifunctional Gasoline Power Tiller is designed to be a versatile and efficient tool for agricultural and gardening tasks, offering a combination of power, adjustability, and ease of use that makes it an excellent choice for both professional and home gardeners.
| Model No. | 3TGQ-4E |
| Engine model | 170F |
| Engine Type | Single Cylinder,4-Stroke, Forced Air-Cooled,gasoline |
| Displacement | 212 cc |
| Maximum power and speed hp(kw)rpm | 7.5(5.6)/1800 |
| Fuel Tank Capacity | 3.6 L |
| Starting System | Recoil |
| Handle bar adjustable range (Vertical) | 360° |
| Tilling ditch Width | 250 mm |
| Tilling ditch Depth | >100mm |
| Working box speed | 420-620 r/min |
| Shift Gear | (1,0,-1)*2 |
| Transmission | Belt + Chain |
| Tire | 3.5-12 |
| Blades | Ditching and Earth cultivating knife (2 pairs) |
| Certification | CE, EMC,EURO V |
Versatile Engine: The single cylinder, 4-stroke, forced air-cooled gasoline engine delivers powerful and efficient performance.
Adjustable Handle Bar: With a 360° vertical adjustment range, it accommodates operators of various heights for comfortable operation.
Wide Tilling Capacity: The 250mm tilling ditch width allows for broad and even cultivation.
Deep Tilling Capability: Capable of tilling to a depth greater than 100mm, suitable for deep soil preparation.
Efficient Working Speed: The 420-620 r/min working box speed ensures a consistent and efficient tilling process.
Multi-Function Gear Shifting: The (1, 0, -1) * 2 shift gear system offers flexibility in different tilling situations.
Durable Transmission: The combination of belt and chain transmission provides a robust and efficient power delivery system.
All-Terrain Tires: The 3.5-12 tires ensure stability and ease of movement across different terrains.
Specialized Blades: Equipped with two pairs of ditching and earth cultivating knives for specialized tilling tasks.
Safety and Environmental Compliance: With CE, EMC, and EURO V certifications, ensuring the tiller meets high safety and environmental standards.
Extended Operation Time: The 3.6-liter fuel tank supports longer working periods without the need for frequent refueling.
User-Friendly Design: The recoil starting system and comfortable handle bar adjustments contribute to ease of use.
