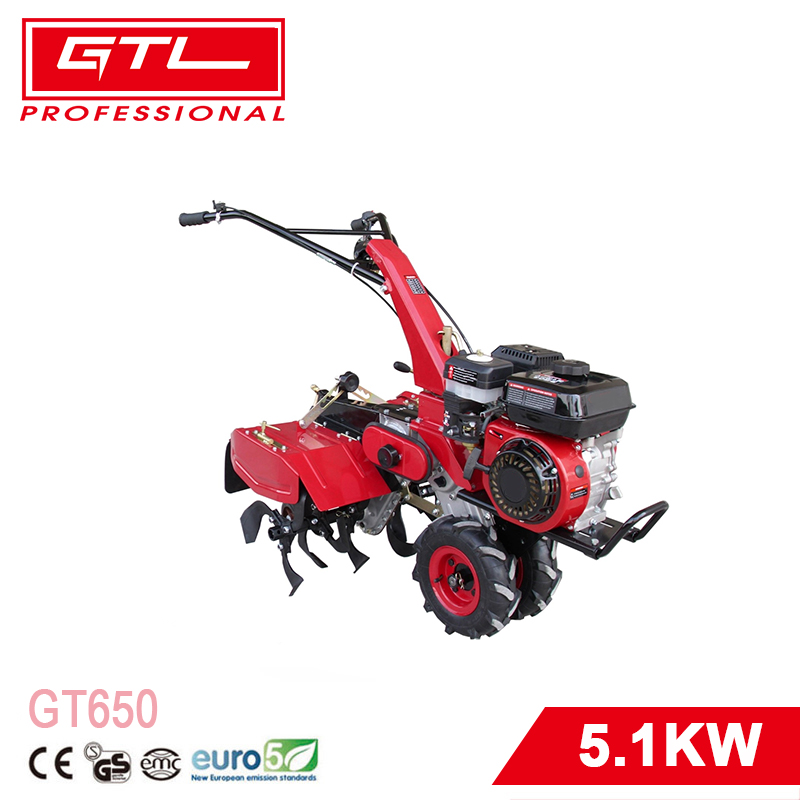

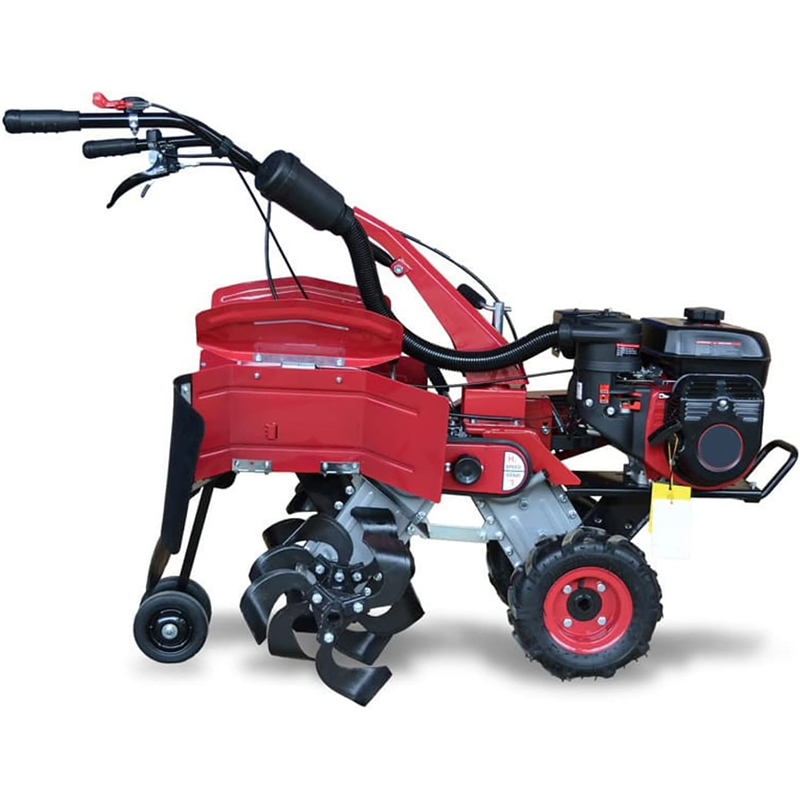

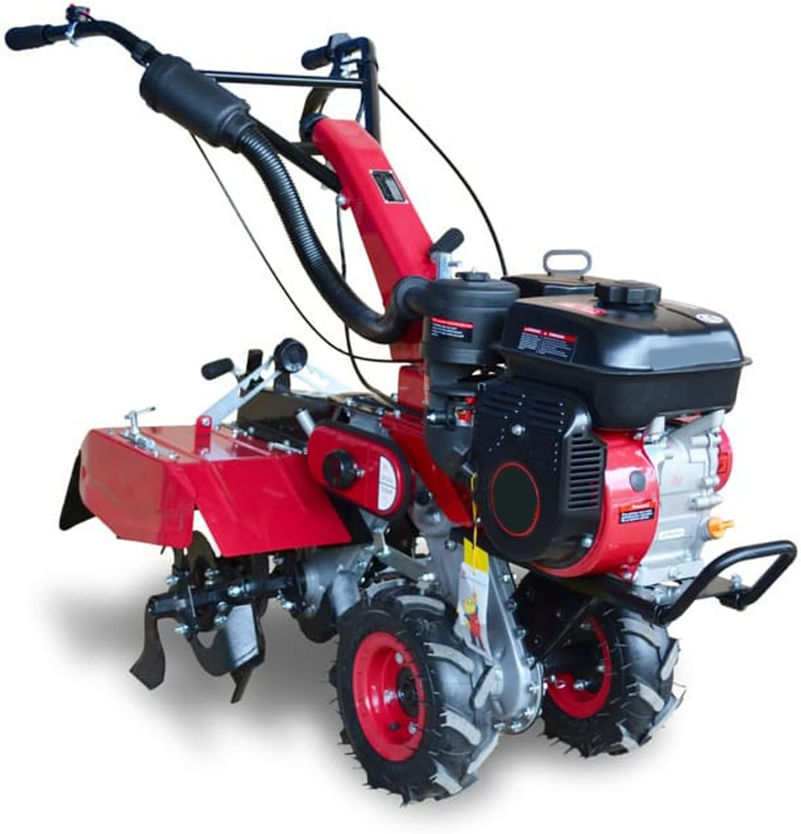

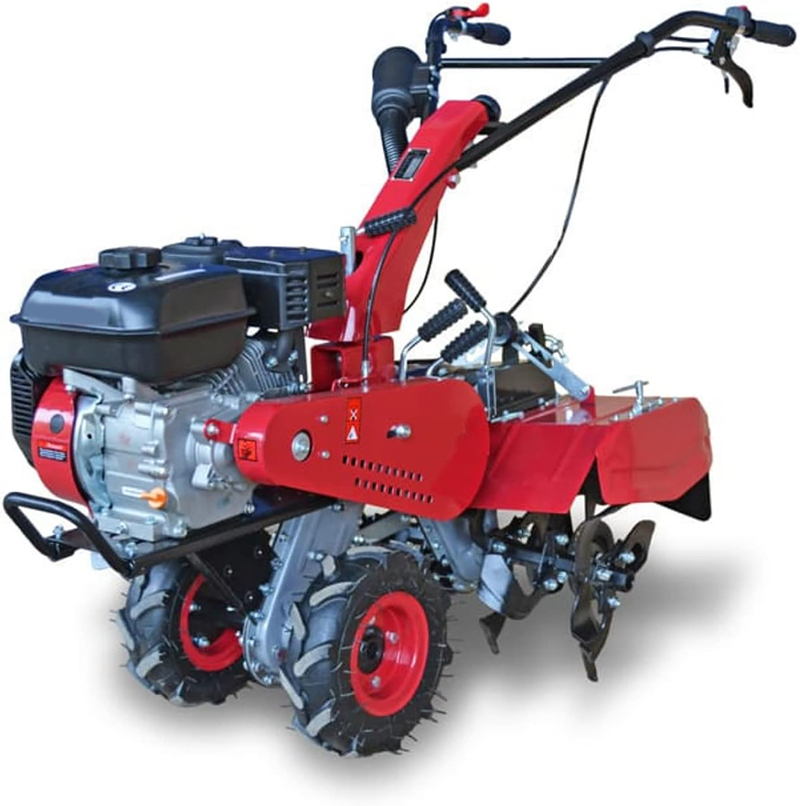

This tiller, with a 270CC WM177F - 3/P engine (9hp/6.5kw at 1800rpm), has a body size of 1600×750×880mm. It offers ditching width 290 - 320mm, tilling width 420 - 650mm, and tilling depth ≥100mm. Featuring gear + belt drive, it comes with 5 ditching blades, 9 rotary blades, iron wheels, and rubber tyres.
Equipped with a 270CC WM177F - 3/P engine (9hp/6.5kw/1800rpm), this tiller (1600×750×880mm) provides ditching (290 - 320mm) and tilling (420 - 650mm, ≥100mm depth). With gear + belt transmission and accessories like ditching blades, rotary blades, iron wheels, and rubber tyres, it's efficient for soil work.
| Item No.: | GT650A |
| Engine model: | WM177F-3/P(270CC) |
| Max power: | 9hp（6.5kw）/1800rpm |
| Body size: | 1600×750×880mm |
| Tilling scope ditching width： | 290～320mm |
| tilling width： | 420～650mm |
| Tilling depth: | ≥100mm |
| Gear shifting walking Gearbox： | forward(H、L)、0、reverse(H、L) |
| Tilling gearbox : | high drive ratio（H、L）,low drive ratio (H、L) |
| Driving model: | gear+belt |
| Transmission oil capacity walking gearbox: | 1.5L |
| Tilling gearbox： | 1.2L |
Powerful 270CC 4-Stroke: With a 270CC displacement, this tiller cultivator provides outstanding performance for tasks in vegetable gardens, flower beds, or home gardens.
Continuous Operation: The enlarged heat dissipation holes prevent overheating and stalling. High-quality tiller keep engine-damaging dirt out, ensuring the garden tiller's smooth operation. The tough alloy metal gearbox maintains performance in various conditions.

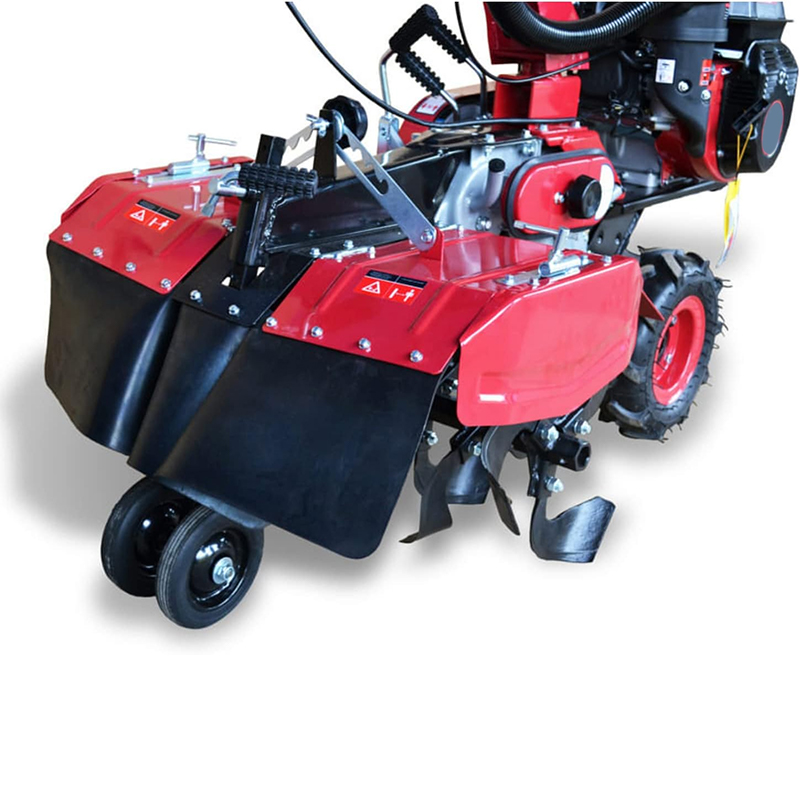

Efficient Work: Equipped with four tines for effective plowing, our tiller features a cultivation width of 650 mm and a depth of 100mm. It handles both sowing and plowing efficiently. Adjustable skid assembly allows you to set its height or depth, while the large drive wheels make it easy to move on the land with reduced resistance.

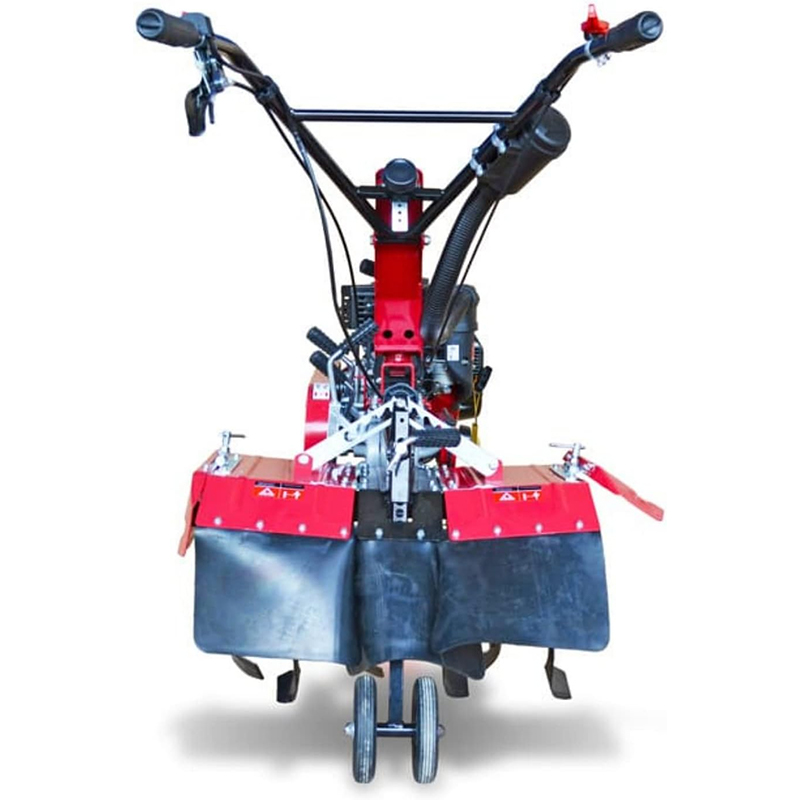

Easy to Handle: The stand-up operation makes tilling effortless and ergonomic. The thickened and long pull cord ensures reliable starts, while handle-mounted switches and brakes provide better control. A protective shield above the tines prevents soil, rocks, or debris from splashing and causing harm.
