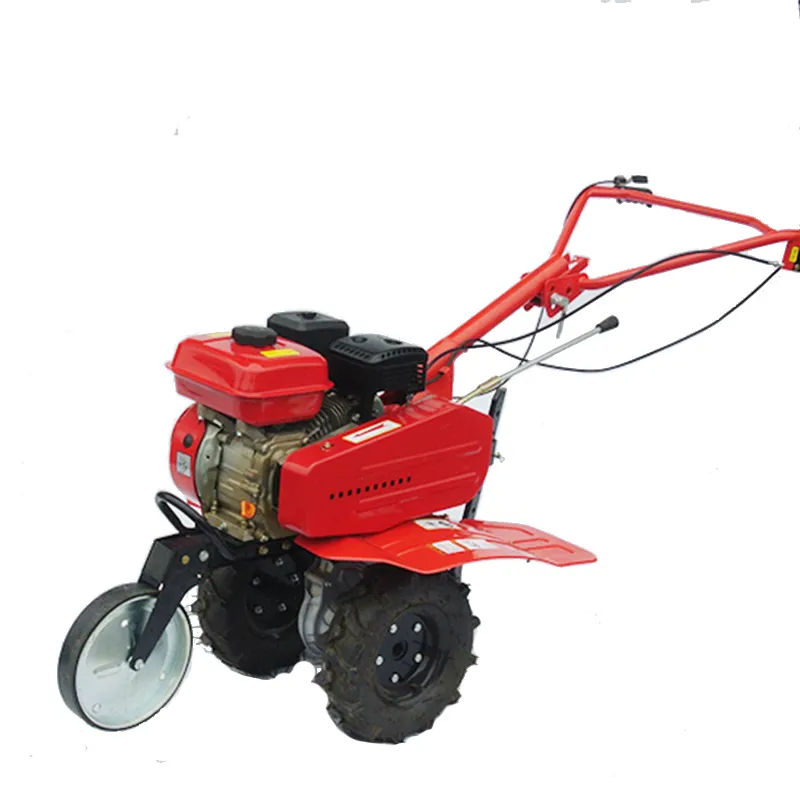

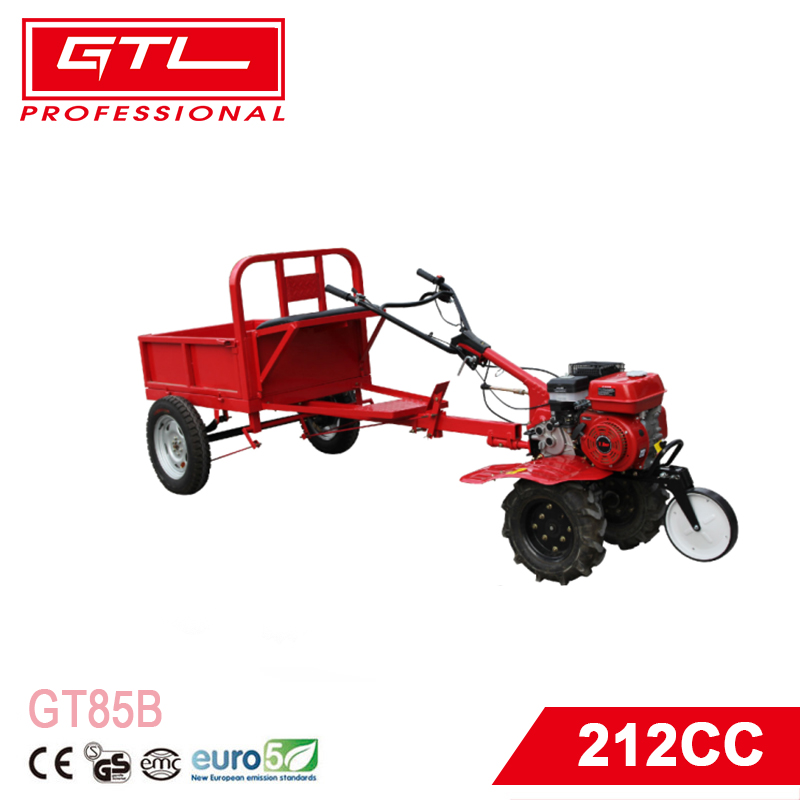

This tiller-trailer combo features a 170F 4-stroke engine (212CC, 7.5HP max at 3600 RPM). With an 800mm working width, 100-300mm depth, 2 forward+1 reverse gears, and belt transmission, it comes with 24 blades, aluminum gearbox, 350-6 wheels, and 2 discs, ideal for efficient tilling and hauling.
Equipped with a 170F OHV engine (212CC, 7.5HP/3600 RPM), this unit offers 800mm tilling width, 100 - 300mm depth, 2F+1R gears, belt drive, aluminum gearbox, 350-6 wheels, 24 blades, and 2 discs, suitable for versatile agricultural use.
| Item No.: | GT85B |
| Engine model: | 170F |
| Engine type: | OHV,25°Tilt,single cylinder,forced air cooling,4-stroke |
| Displacement: | 212CC |
| Bore x stroke: | 70*55mm |
| Fuel tank capacity: | 3.6L |
| Starting System: | Recoil Start(Hand Start) |
| Rated Power: | 7.0HP (5.0KW)/3600 RPM |
| Max Power: | 7.5HP (5.5KW)/3600 RPM |
| Working width: | 800mm |
| Working depth: | 100-300mm |
| Gear Shifting: | 2 Forward , 1 Reverse |
| Blades Type: | 24 Pcs/3 Group×4PCS |
| Gearbox: | Aluminum Gearbox |
| Transmission: | Belt |
| Transmission oil capacity: | 1.65 L ( transmission) / 0.6 L (engine) |

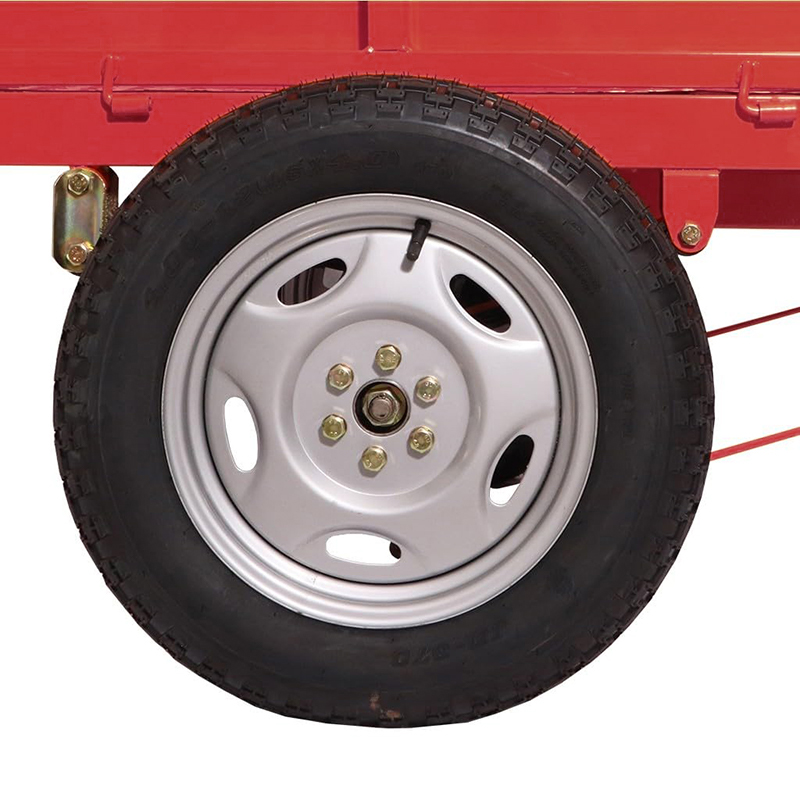

| Wheel: | One pair of 350-6 wheels |
Powerful Engine: This tiller-trailer combo delivers a rated power of 7.0HP (5.0KW) at 3600 RPM and a maximum power of 7.5HP (5.5KW) at the same RPM. Such power ensures efficient soil tilling, easily handling various soil conditions, from soft to moderately hard ground, to prepare the soil effectively for planting.

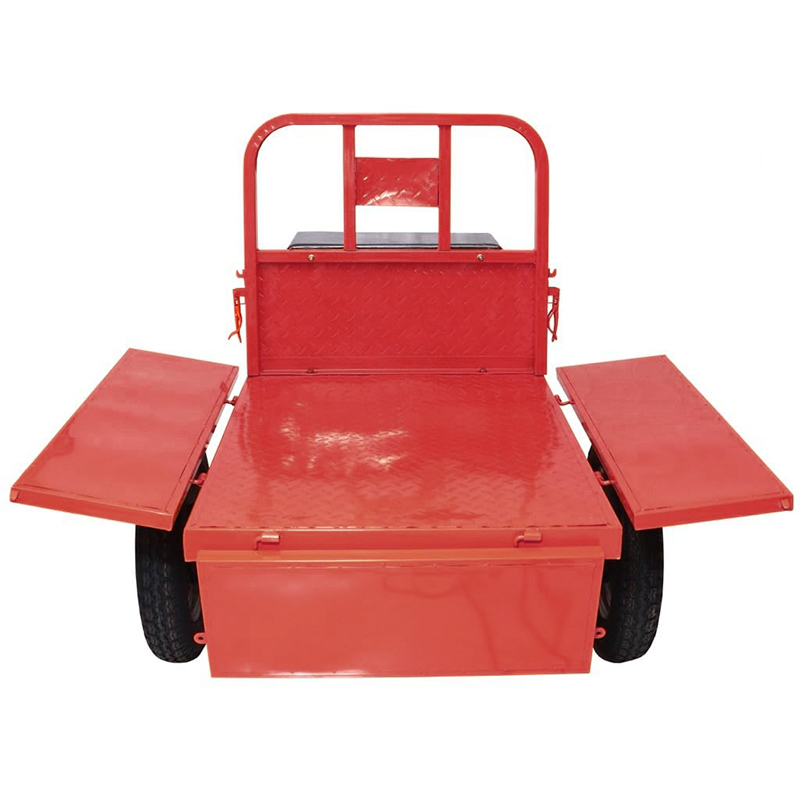

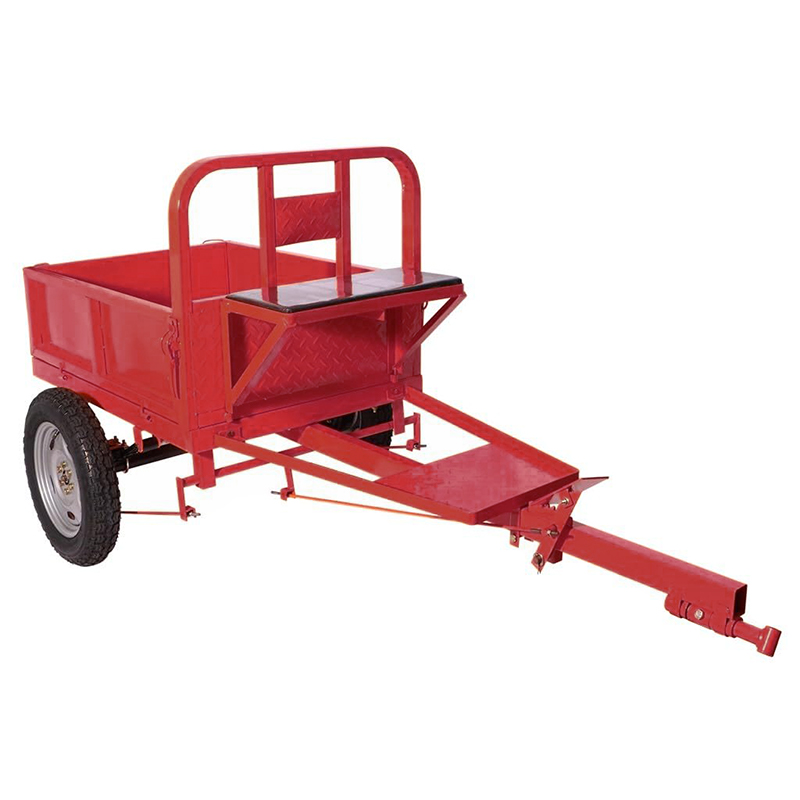

Versatile Tilling and Hauling Capabilities: With a working width of 800mm and a working depth ranging from 100mm to 300mm, it can adapt to different tilling needs, whether it's shallow cultivation for sowing or deeper tilling for soil improvement. The attached trailer also allows for convenient hauling of agricultural materials like seeds, fertilizers, and harvested crops, making it a multi-functional tool for farm work.
User-Friendly Operation and Maintenance: Featuring a recoil start system, it's easy to get the engine running with a simple pull. The gear shifting system offers 2 forward gears and 1 reverse gear, enabling smooth maneuvering in the field. For maintenance, the transmission oil capacity is 1.65L and the engine oil capacity is 0.6L, with clear markings and accessible fill points, making routine oil checks and changes straightforward.
Durable and Reliable Construction: The aluminum gearbox ensures good durability and heat dissipation, contributing to the long - term reliability of the transmission system. The belt transmission is robust and requires relatively low maintenance compared to some other transmission types. Also, the one pair of 350 - 6 wheels provides stable support and good traction on various terrains, enhancing the overall durability and usability of the machine.
