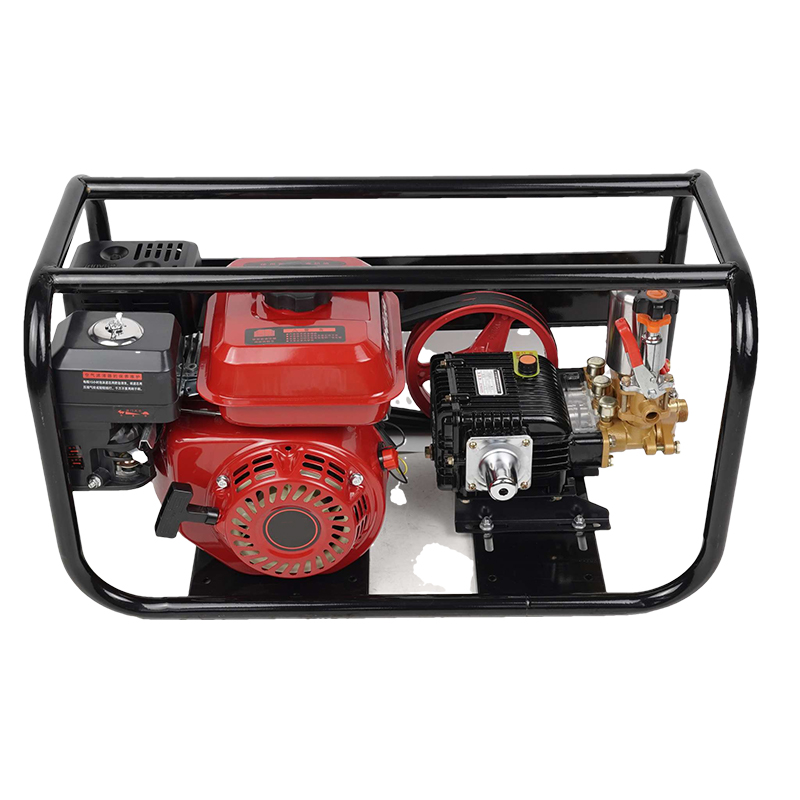

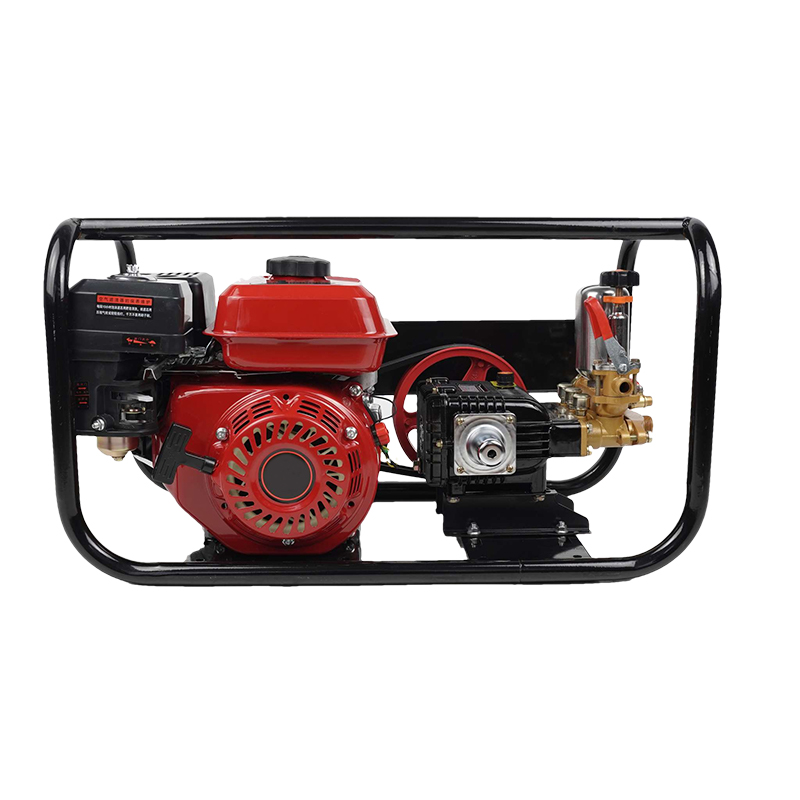

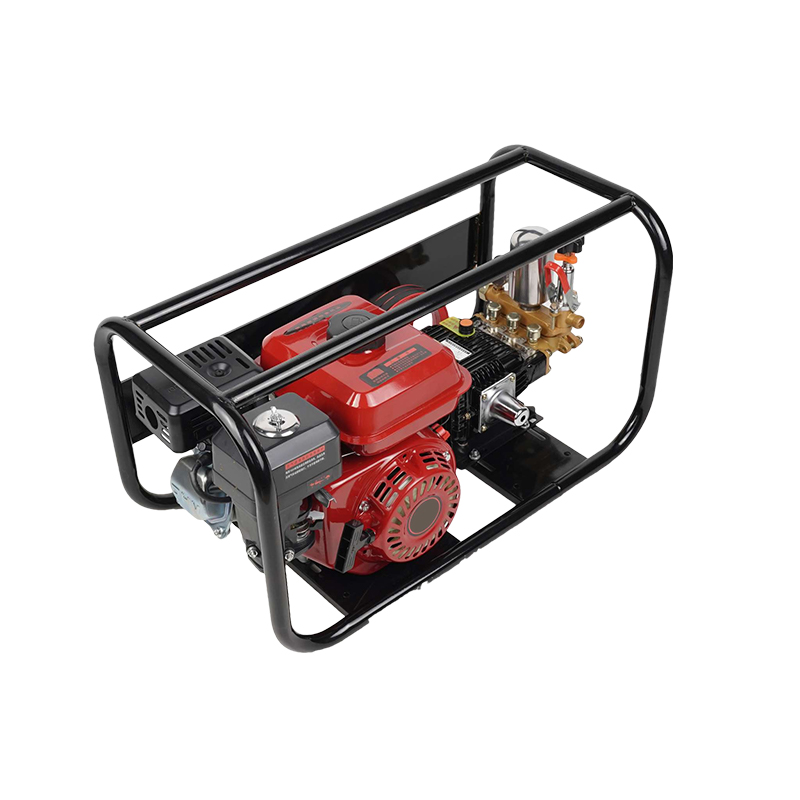

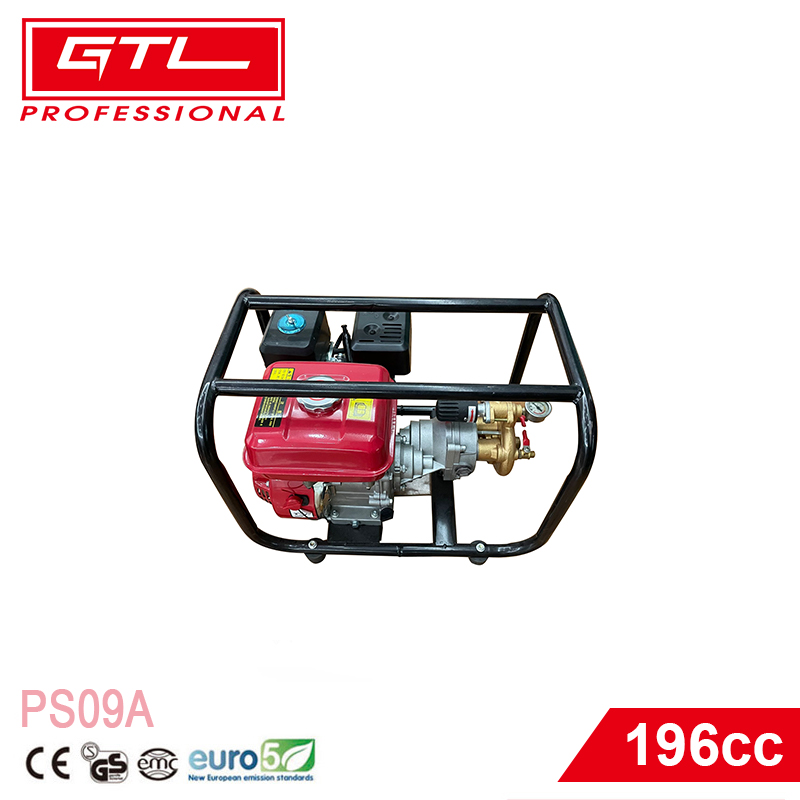

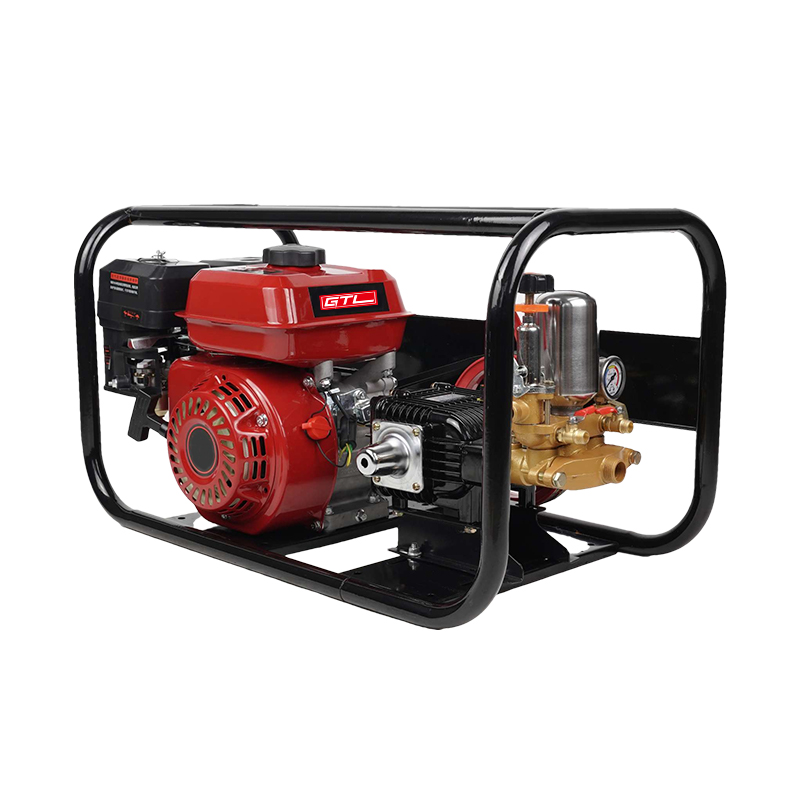

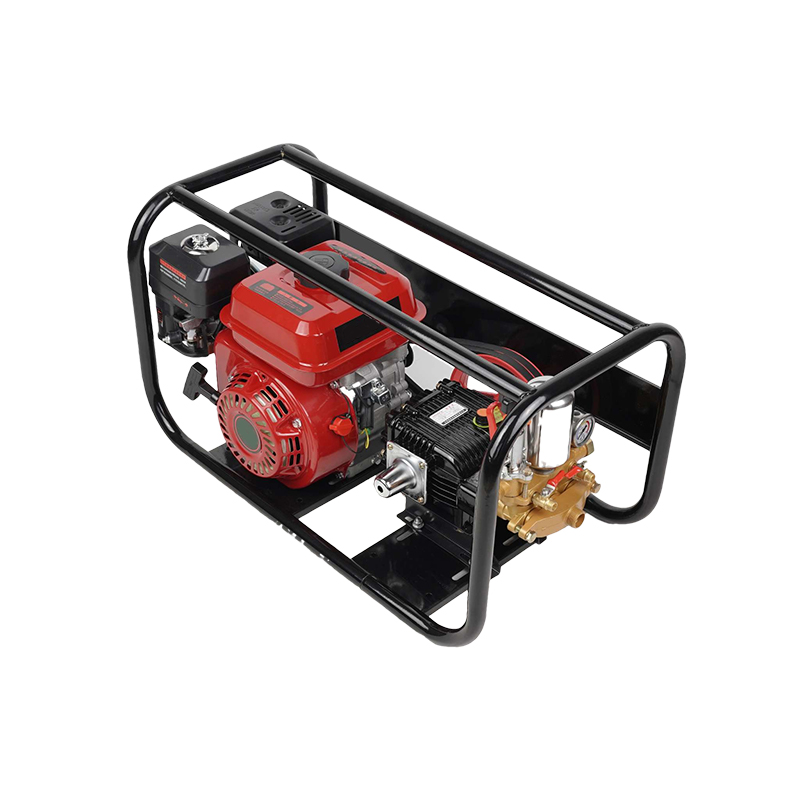

A high-performance gasoline-powered plunger pump set with a 6.5HP 196cc engine, featuring a working pressure range of 10-50 Bar and a suction volume of 22-27L/min, ideal for various cleaning and irrigation tasks.
Equipped with a 1-cylinder, 4-stroke air-cooled OHV gasoline engine, this Model 168F pump offers reliable power with T.C.I ignition and recoil starting, suitable for both commercial and industrial applications.
| Item No.: | PS09A |
| Plunger No.×dia: | 3×9mm |
| Plunger dia: | 25mm |
| Rotation capacity: | 1500-1800rpm |
| Suction volume: | 22-27L/min |
| Working pressure: | 10-50 Bar |
| Model | 168F |
| Type of Engine: | 1-Cylinder, 4-stroke, Air-cooled OHV gasoline engine |
| Maximum power output: | 6.5HP |
| Displacement : | 196cc |
| Igntion System | T.C.I |
| Starting System | recoil |
| Certification: | CE, EMC,EURO V |
Powerful Engine: 1-cylinder, 4-stroke, air-cooled OHV gasoline engine with 6.5HP maximum power and 196cc displacement, ensuring strong and stable performance.
Efficient Plunger System: Features 3×9mm plunger (25mm diameter) with a rotation capacity of 1500-1800rpm, delivering a suction volume of 22-27L/min and working pressure of 10-50 Bar for efficient fluid transfer.
Reliable Operation: Equipped with T.C.I ignition system and recoil starting, enabling easy and quick startup. The robust frame design ensures durability and portability.
Versatile Application: Suitable for a wide range of uses including high-pressure cleaning, agricultural irrigation, and industrial fluid handling, both in commercial and outdoor settings.
