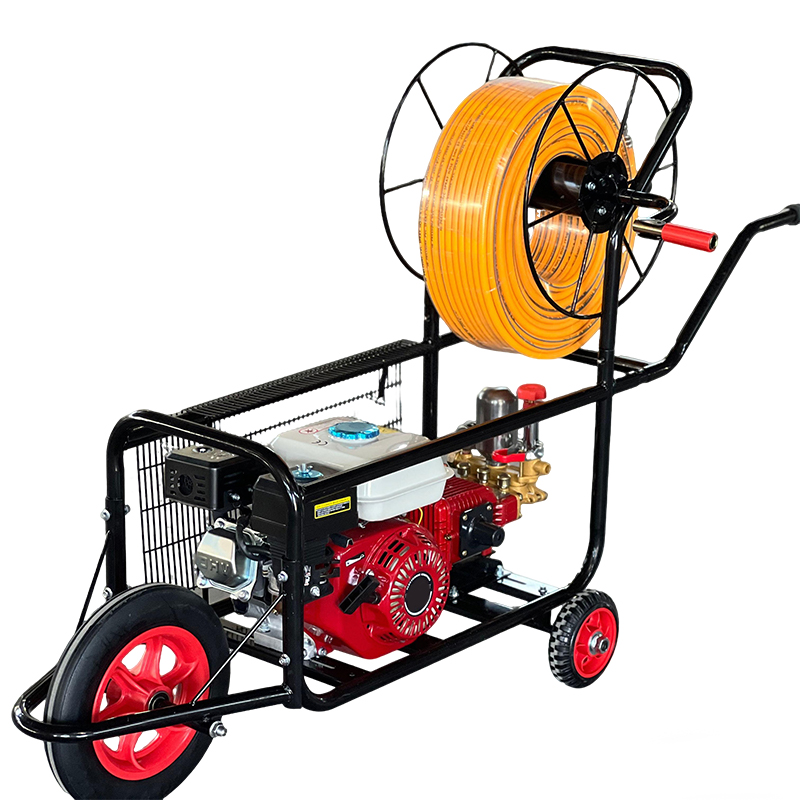

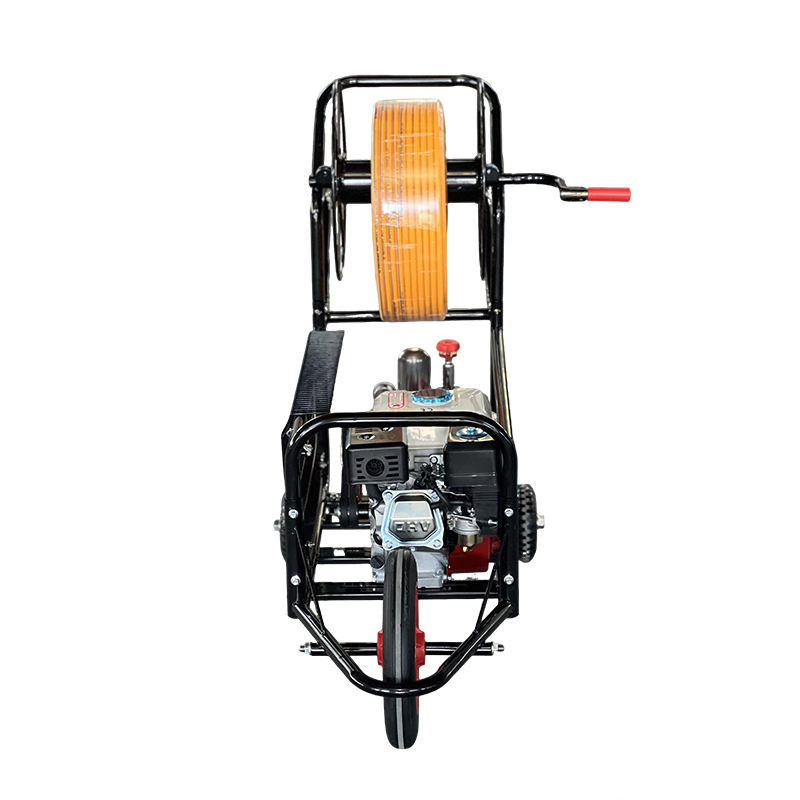

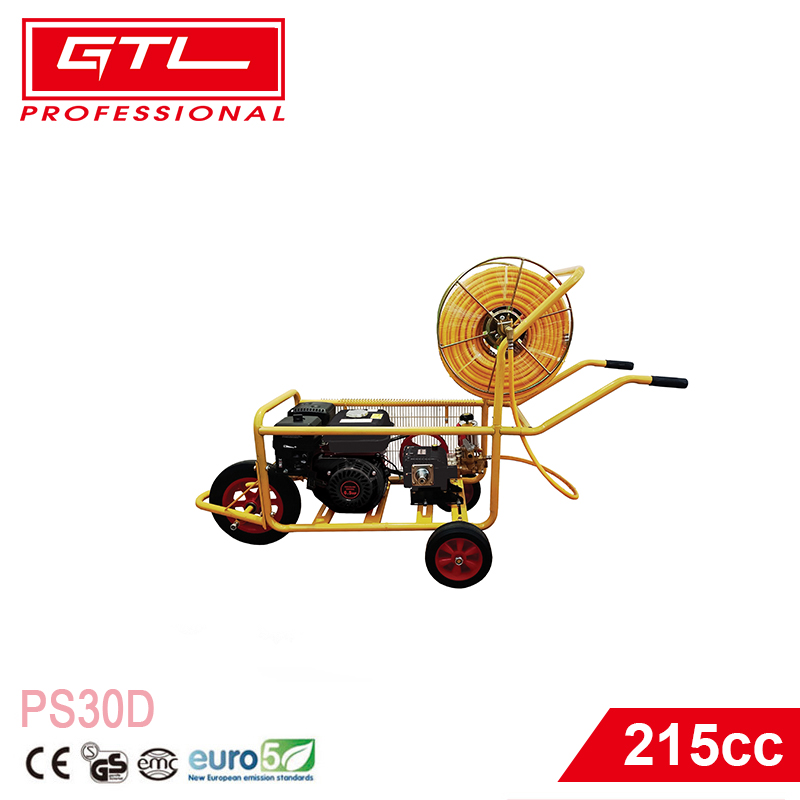

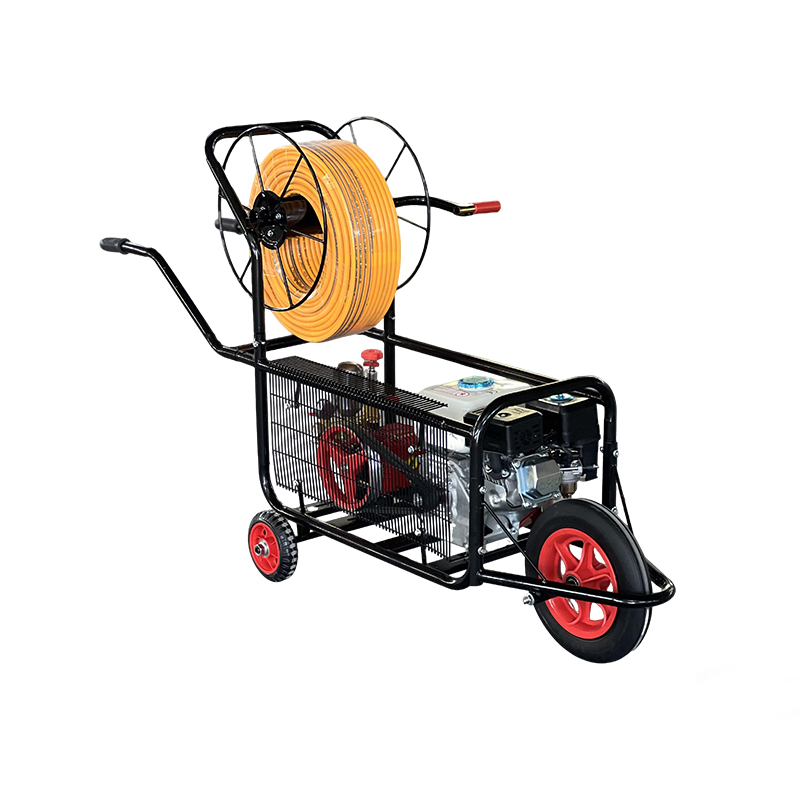

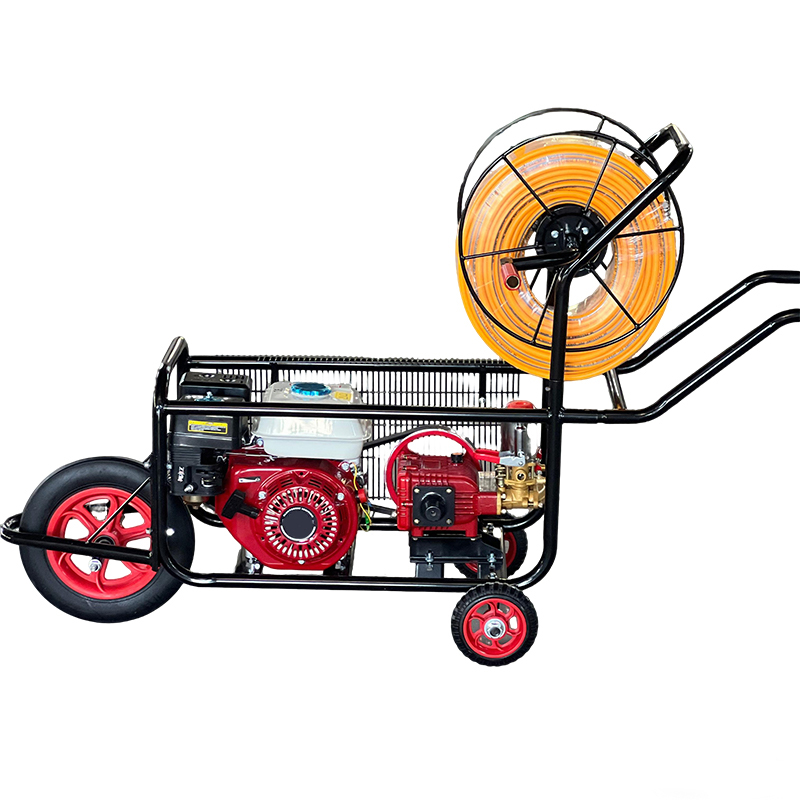

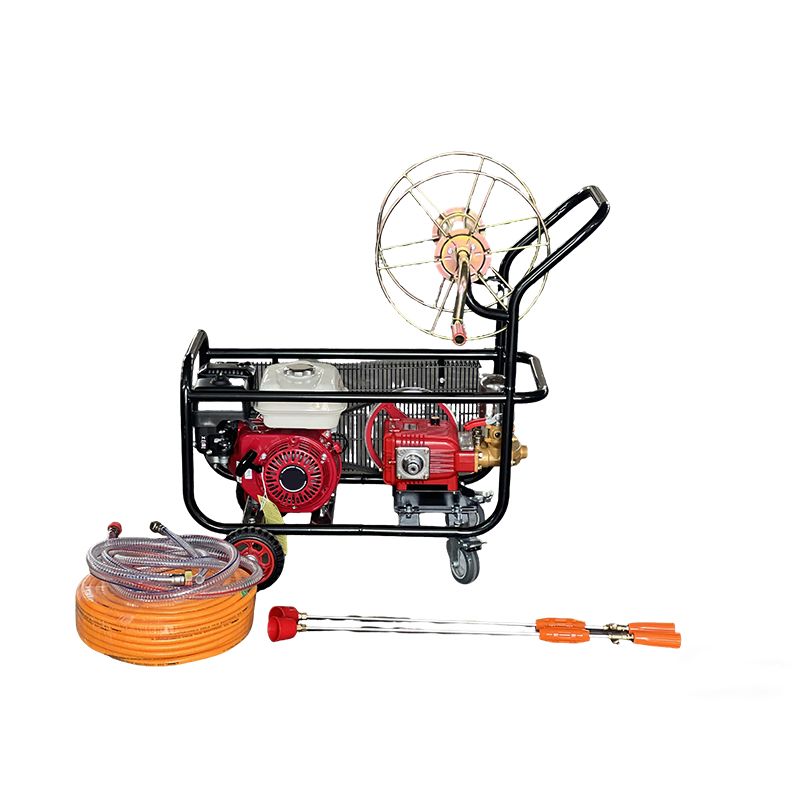

This is a gasoline-powered plunger pump cart with a hose reel, featuring a 170F engine (7.5HP, 215cc) and delivering a suction volume of 30-40L/min at a working pressure of 1.0-4.0Mpa, ideal for various spraying and cleaning tasks.
Equipped with a 3×30mm plunger, 20mm stroke, and 800-1000rpm rotation capacity, this recoil-started pump cart offers reliable performance for agricultural, industrial, and commercial applications requiring efficient liquid transfer and high-pressure operation.
| Item No. | PS30D |
| Plunger No.×dia: | 3×30mm |
| Stroke: | 20mm |
| Rotation capacity: | 800-1000rpm |
| Suction volume: | 30-40L/min |
| Working pressure: | 1.0-4.0Mpa |
| Model | 170F |
| Type of Engine: | 1-Cylinder, 4-stroke, Air-cooled OHV gasoline engine |
| Maximum power output: | 7.5HP |
| Displacement : | 215cc |
| Igntion System | T.C.I |
| Starting System | recoil |
| Certiffication: | CE, GS, EMC,EURO V |
Power & Performance: Driven by a 1-cylinder, 4-stroke, air-cooled OHV gasoline engine (Model 170F) with 7.5HP maximum power and 215cc displacement, it achieves a rotation capacity of 800-1000rpm, ensuring strong and consistent power output for heavy-duty tasks.
Pump Efficiency: Features a 3×30mm plunger, 20mm stroke, and delivers a suction volume of 30-40L/min at a working pressure range of 1.0-4.0Mpa, enabling efficient liquid suction and high-pressure spraying/cleaning performance.
Design & Convenience: Comes with a hose reel for organized hose storage and a cart design with wheels for easy mobility. The recoil starting system and T.C.I ignition system ensure quick and reliable startup in various environments.
Versatile Applications: Suitable for a wide range of uses including agricultural spraying (pesticides, fertilizers), industrial cleaning, commercial washing, and general liquid transfer tasks, making it a multi-functional solution for both professional and semi-professional users.
