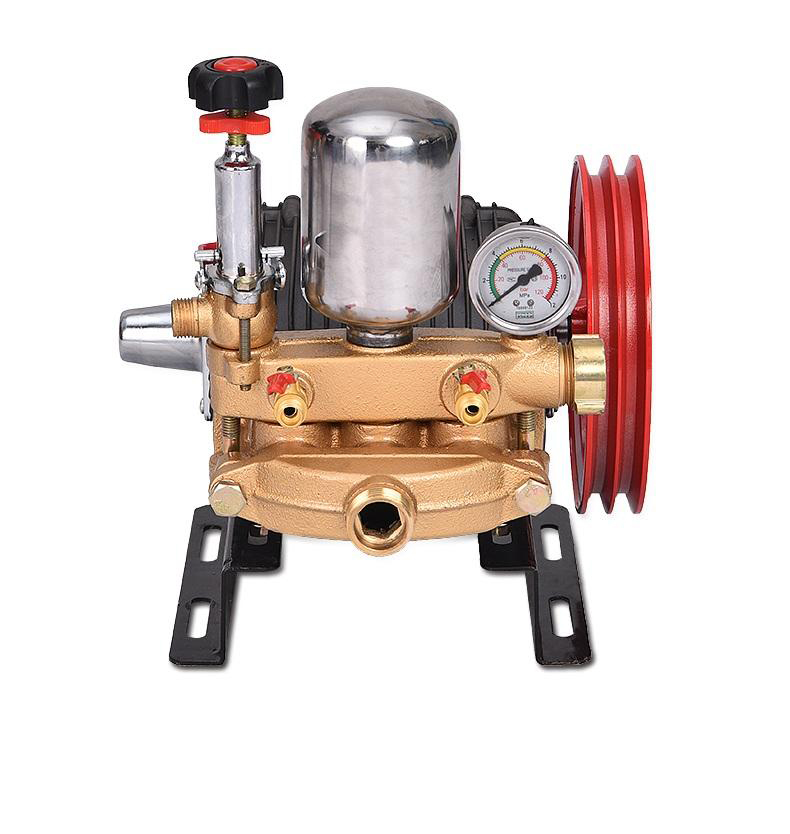

| Item No. | PS22H |
| Working pressure: | 2.1-4.5Mpa |
| Plunger No.xdia.: | 3x22mm |
| Power: | 1.5-2KW |
| Output: | 15-22L/min |
| Net weight: | 9.5kgs |
| Packing dimension: | 33*28*33cm |
Check each fastener to make sure the sprayer and motor are securely mounted on the shelf.
The two pulleys should be installed in a straight line and the belt should be tight.Each joint of the pipe must be locked to prevent leakage.
Before starting the motor, turn off the water outlet switch, loosen the pressure regulator, and then pull the pressure regulator to the top.
Start the motor to drive the sprayer, maintain the proper speed, and press the pressure regulating handle to the bottom. Adjust the pressure regulating screw to maintain the right pressure
Turn on the water switch and start spraying.After spraying, apply the pressure regulator to the top and operate the sprayer with water to remove the residual chemicals.
