This outboard motor, with a net weight of 12.5Kg, boasts a maximum output of 3.5HP and a full throttle operating range of 4000 - 4300r/m, delivering reliable power for your boating needs.
Featuring a 57CC engine, manual starting and tilt systems, and an integral fuel tank capacity of 1.5L, this outboard motor combines performance and convenience.
| Item No: | T3.5 |
| N.W: | 12.5Kg |
| Full throttle operating range: | 4000-4300r/m |
| Maximum output: | 3.5HP |
| Idea speed ( in neutral): | 1150-1250r/m |
| Engine type: | 1 |
| Engine type: | 57CC |
| Bore x stroke: | 42.0*35mm |
| Control system: | Tiller |
| Starting System: | Manual |
| Gear position: | Forward-neutral |
| Gear ration: | 2.08（27/13） |
| Trim and tilt system: | Manual tilt |
| Integral fuel tank capacity: | 1.5L |
| Ignition system: | CDI |
| Gear oil capacity: | 0.075L |
| Propeller options: | 7 1/4*5-A |
Performance Parameters: It can achieve a maximum output of 3.5HP, which enables efficient movement on the water. The full throttle operating range is 4000 - 4300r/m, guaranteeing stable power supply. The ideal neutral speed is 1150 - 1250r/m, ensuring smooth idling.
Engine Configuration: It is equipped with a 57CC engine, and the bore × stroke size is 42.0×35mm, ensuring enough power production. A CDI ignition system is used for reliable and fast ignition, improving the starting performance.

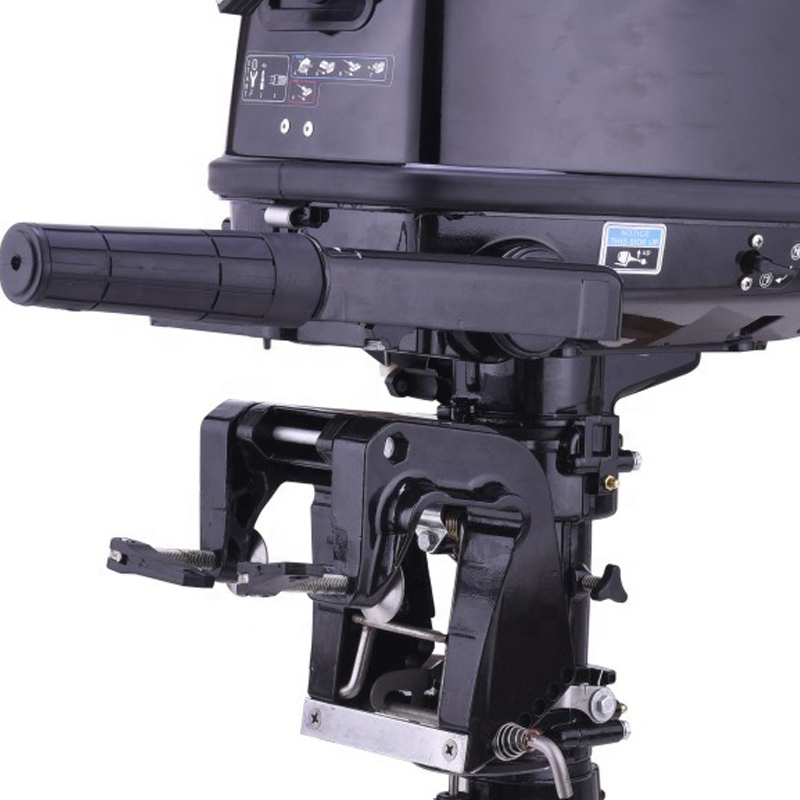

Control and Systems: The control system is of tiller type, offering straightforward and direct steering control. The starting system is manual, easy to operate, and the trim and tilt system is also manual tilt, allowing for simple adjustment of the motor's angle.
Capacity and Accessories: The integral fuel tank has a capacity of 1.5L, supporting longer boating durations. The gear oil capacity is 0.075L, ensuring proper lubrication of gear parts.
There are propeller options of 7 1/4×5 - A, suitable for different water and boating situations to achieve the best performance.
