The spindle turns at 1400 RPM, allowing you to power through a range of both hard & soft woods with ease.
This high-speed direct drive operation allows for faster mortises so the cutter is in contact with the wood for shorter periods of time with less heat build-up. This prevents wood burning and keeps your bits and cutters sharper, longer.Adjustable rack and Pinion fence and rack and Pinion head raising and lowering.Mortising head column can be turned 180 Degree and remounted for off-table mortising.

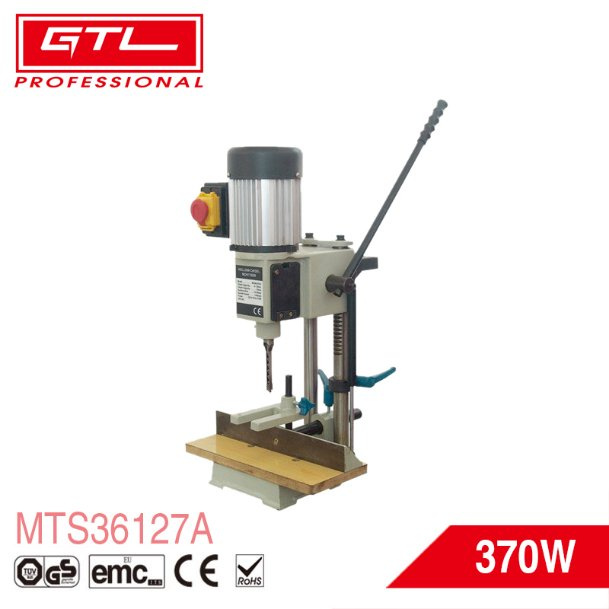

| Model Number | MTS36127A |
| Voltage/Frequency | 110V/230V~50Hz/60Hz |
| Input Power | 370W |
| Spindle Speed | 1400/min |
| Chisel Capacity | 6-12mm(1/4″-1/2″) |
| Max. Mortising Depth | 76mm(3″) |
| Drill Chuck Capacity | 1-13mm |
| Axis To Fence | 90mm |
| Chisel To Table | 125mm |
| Table Size | 340*150mm |
| Over Height | 700mm |
| Qty/Ctn | 1pc |
| G.W/N.W | 27/25kg |
| Dimensions | 57x31x28cm |
| Qty/20GP | 616pcs |
Easy Bit Changes & High-Speed OperationTool-free, open access to the drill chuck enables quick and convenient bit changes.
The 1400 RPM spindle speed delivers efficient cutting through both hard and soft woods.
Reduced Heat & Longer Tool LifeHigh-speed direct drive minimizes contact time between cutter and wood, reducing heat buildup.
This prevents wood burning and extends the sharpness and service life of bits and cutters.
Precise & Flexible AdjustmentsRack-and-pinion mechanisms allow smooth adjustment of both the fence and the mortising head height.
The mortising head column can be rotated 180° and remounted for off-table mortising operations.
Enhanced Stability & Control：Adjustable fence and hold-down clamp secure the workpiece firmly.
The dovetail way on the mortising head ensures smooth, accurate vertical movement and improved cutting precision.
